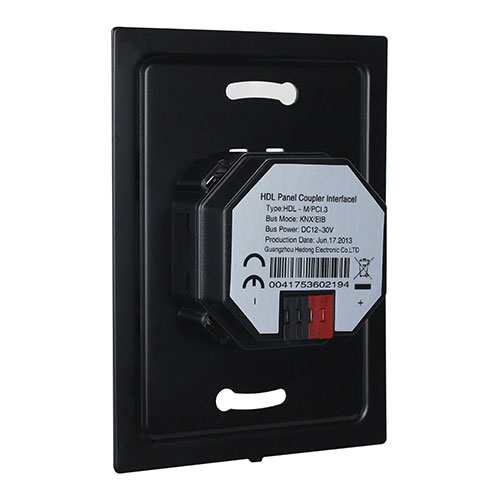

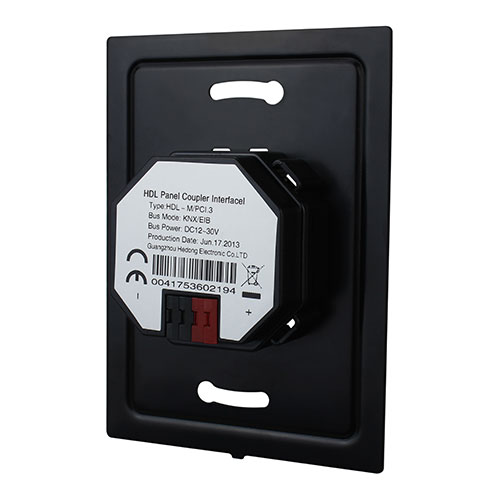

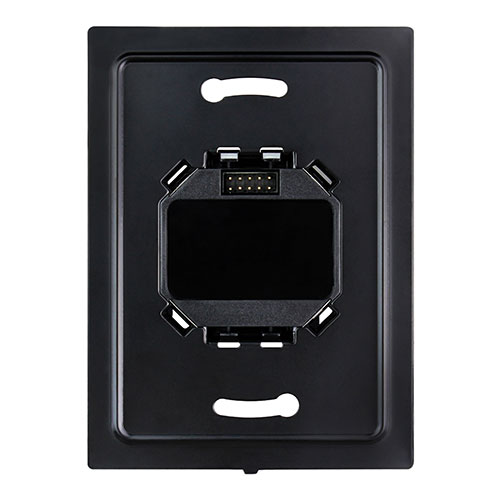

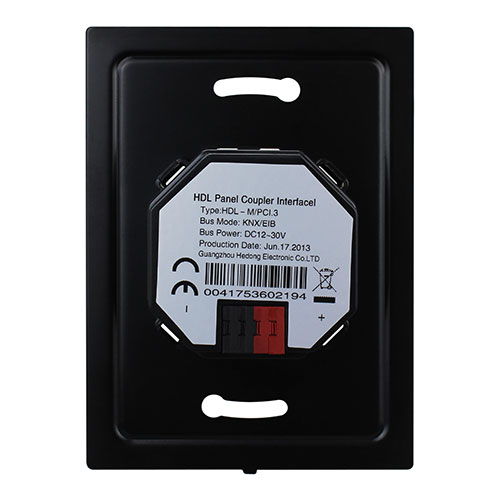

KNX Panel Power Interface US
KNX Panel Power Interface US
KNX Panel Power Interface US
KNX Panel Power Interface US

KNX Panel Power Interface US

model:M/PCI.3

KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.

KNX Panel Power Interface US
KNX Panel Power Interface US
KNX Panel Power Interface US
KNX Panel Power Interface US

KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.

■ Provide panel or sensor with working power

■ Provide panel or  sensor with communication signal



Basic Parameters

Working voltage   21~30V DC

Communication     KNX

Cable diameter of KNX terminal   0.6-0.8mm


External Environment

Working temperature -5℃~45℃

Working relative humidity ≤90%

Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications

Dimensions

EU: 83.5×83.5×26.5  US: 83.5×114.5×26.5(mm)

Net weight

EU: 103g US: 132g

Housing material Flame-retardant nylon, metal

Installation Wall box (See Figure 9 - 11)

Protection rating (Compliant with EN 60529) IP20
