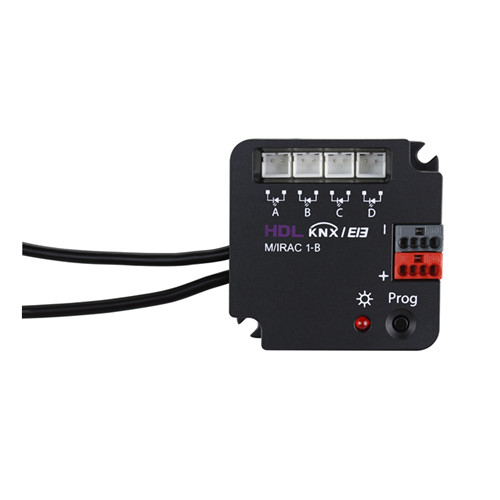

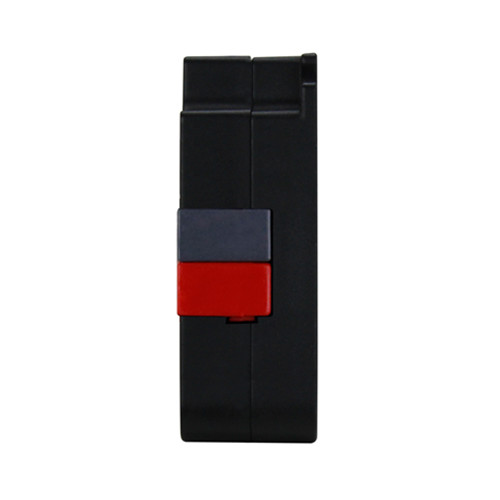

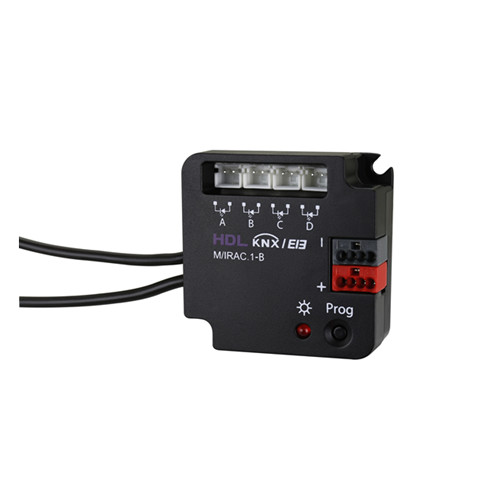

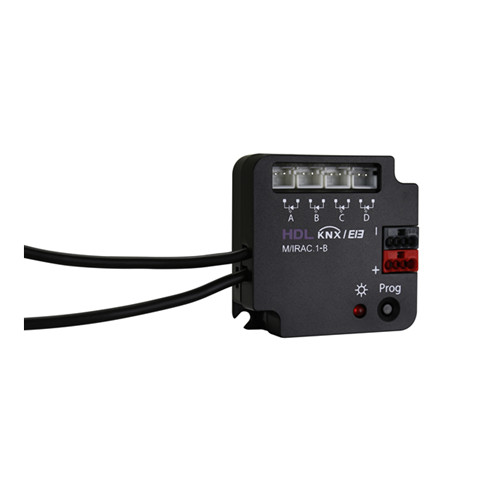

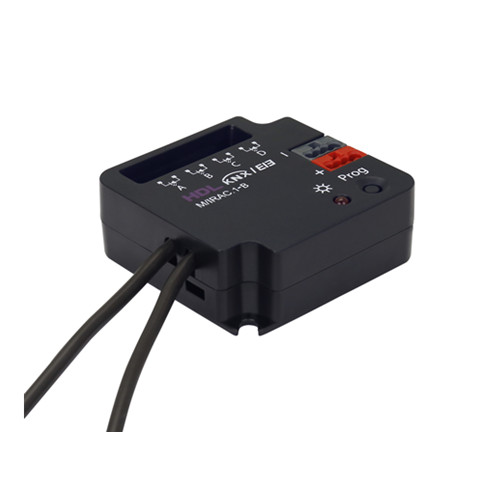

model:M/IRAC.1

KNX Infrared Emitter is one of HDL KNX/EIB series products. The module can store up to 960 infrared codes. The first 150 infrared codes are used for general control, for example TV, DVD and other infrared receiving devices, and the latter 810 infrared codes are used for controlling AC of any brand.

KNX Infrared Emitter
KNX Infrared Emitter
KNX Infrared Emitter
KNX Infrared Emitter
KNX Infrared Emitter

KNX Infrared Emitter is one of HDL KNX/EIB series products. The module can store up to 960 infrared codes. The first 150 infrared codes are used for general control, for example TV, DVD and other infrared receiving devices, and the latter 810 infrared codes are used for controlling AC of any brand.


■ Various control modes: Single control, Repeated control, Sequence control, Air conditioning control
■ AC control types: ON/OFF control, Temperature control, Cooling/ Heating, Fan speed control, Swing control
■ Supports current detection with current up to 2A
■ After learned, obtained and downloaded the infrared codes through infrared learning page of KNX Assistant Software and IR Learner, the Infrared Emitter can control TV, DVD, air conditioner etc.
■ After current detection function setting, the module can confirm the ON/OFF status of the device. This function mainly aims at the circumstance that one IR code control the ON/OFF status of the device.


Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Transmitting carrier wave frequency 38kHz
Emission distance 7m
Current detection <2a<>
Communication KNX/EIB

Cable diameter of KNX terminal 0.6 - 0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 45mm×45mm×16mm
Net weight 60g
Housing material ABS
Installation Screw installation
Protection rating (Compliant with EN 60529) IP20
