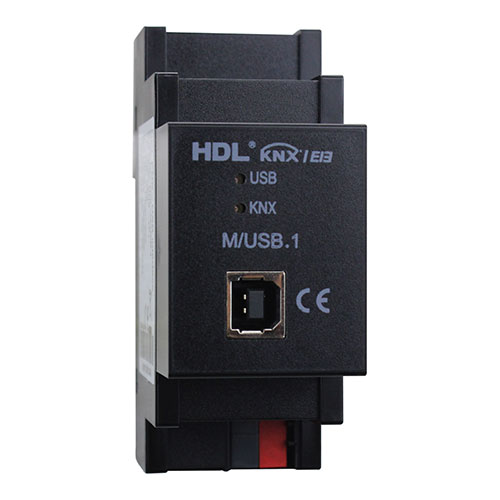

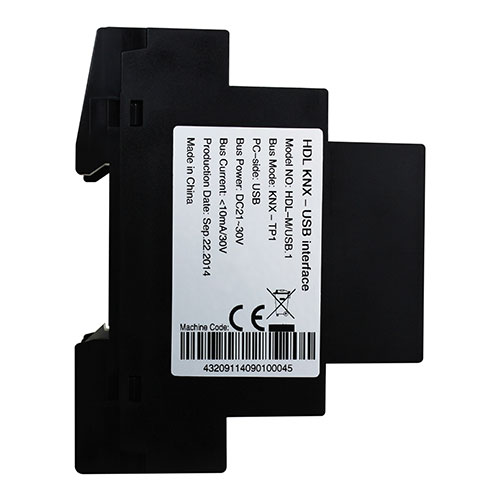

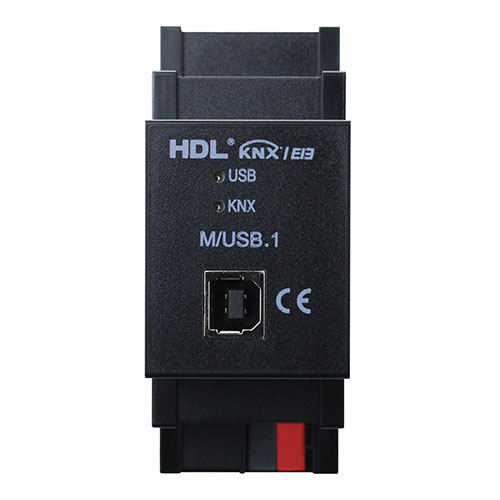

model:M/USB.1

KNX USB Interface is a KNX system device with a USB interface that establishes bidirectional data transfer between the computer and the KNX Bus. The KNX USB Interface supports operations, for example, KNX address management, application parameter management, and KNX Bus device diagnostics. The device is used in conjunction with ETS and standard KNX software.

KNX USB Interface
KNX USB Interface
KNX USB Interface
KNX USB Interface
KNX USB Interface
KNX USB Interface
KNX USB Interface

KNX USB Interface is a KNX system device with a USB interface that establishes bidirectional data transfer between the computer and the KNX Bus. The KNX USB Interface supports operations, for example, KNX address management, application parameter management, and KNX Bus device diagnostics. The device is used in conjunction with ETS and standard KNX software.

■ Supports KNX address management, application parameter management, and KNX Bus device diagnostics
■ Connects PC and KNX devices to enable KNX device programming through PC. USB drive is required for and the first time.
■ Supports telegrams with maximum 228 bytes length.


Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Communication KNX
Interface USB

Cable diameter of KNX terminal 0.6 - 0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 90mm×36mm×70mm
Net weight 70g
Housing material PA66
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
