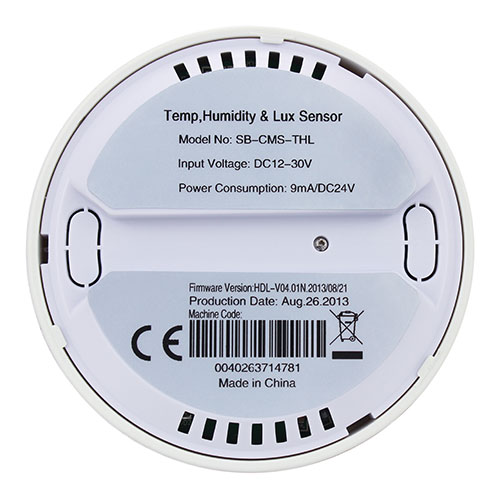

Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor

Ceiling Mount Temp. Humidity & LUX Sensor

model:HDL-MASTH.2C

Ceiling Mount Temp. Humidity & LUX Sensor is a sensor with built-in temperature sensor, LUX sensor, humidity sensor, dry contact input and external universal switch. The logic in the sensor can manage all different conditions of sensors to control different targets and achieve different functions. The sensor supports HDL security function and security command.

Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor
Ceiling Mount Temp. Humidity & LUX Sensor

Ceiling Mount Temp. Humidity & LUX Sensor is a sensor with built-in temperature sensor, LUX sensor, humidity sensor, dry contact input and external universal switch. The logic in the sensor can manage all different conditions of sensors to control different targets and achieve different functions. The sensor supports HDL security function and security command.

■ Built-in LUX sensor, temperature sensor, humidity sensor, 2 channels dry contact input, 2 universal switches, logic
■ 2 logical relations: OR, AND
■ 24 logic module functions, targets can be controlled regardless of the logic is true or false
■ The range of universal switch number in logic function is 201-248, each logic has 2 universal switch numbers.
■ Multiple control targets: Scene Switch, Sequence Switch, Universal Switch, Single Channel Lighting Control, Broadcast Scene Or Channel, Curtain Switch, GPRS, Panel Control, Security Module, Music Play, etc.
■ Supports update via HDL Buspro.


Basic Parameters
Working voltage 12~30V DC
Working current 25mA/24V DC
Range of temperature sensor -20℃~+60℃
Range of LUX sensor 0~5000Lux

Range of humidity sensor 20%~95%


External Environment
Working temperature -5°C~45°C
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 80(Diameter)×32(mm)
Net weight 92.5g
Housing material ABS
Installation Ceiling mount
Protection rating (Compliant with EN 60529) IP20
