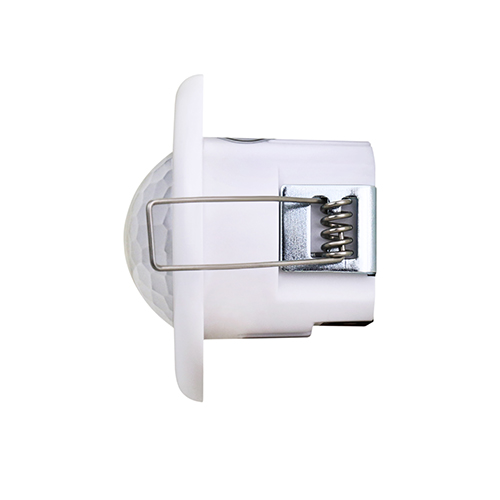

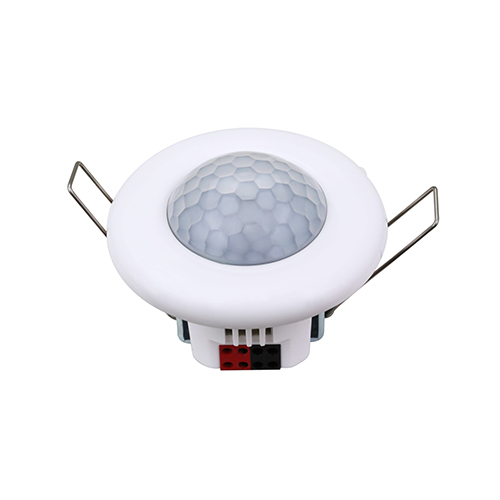

KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor

KNX Mini PIR & Lux Sensor

model:M_IS05.1

KNX Mini PIR & Lux Sensor is a multi-function sensor which contains PIR sensor, temperature sensor, Lux sensor and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master/slave mode are supported.

KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor
KNX Mini PIR & Lux Sensor

KNX Mini PIR & Lux Sensor is a multi-function sensor which contains PIR sensor, temperature sensor,
Lux sensor and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical
relations AND, OR can be set and single mode and master/slave mode are supported.



■ With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semiautomatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking.
■ With 2CH constant brightness control, dimming values and forced operation can be set.
■ The sensor has 5 logic blocks and each block contains 10 object outputs. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking.
■ Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
■ Logic inputs: PIR sensing status, brightness value, temperature and external telegrams.
■ 2 logical relations: AND, OR
■ 2 working modes: Single mode and master / slave mode.
■ The logic validity can be set by external telegram.


Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
PIR detection range Φ8m (Installation height:3m)


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions Φ63×46.6 (mm)
Net weight 43g
Housing material ABS,PC,iron
Installation Ceiling-mounted/Flush-mounted
Protection rating (Compliant with EN 60529) IP20
