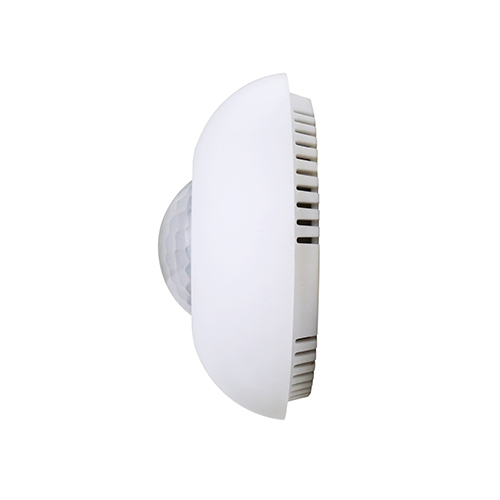

KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor

KNX Ceiling Mount PIR & Lux Sensor

model:M/HS05.1

KNX Ceiling Mount PIR & Lux Sensor is a multi-function sensor which contains PIR sensor, temperature sensor, Lux sensor, dry contact and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported.

KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor
KNX Ceiling Mount PIR & Lux Sensor

KNX Ceiling Mount PIR & Lux Sensor is a multi-function sensor which contains PIR sensor, temperature sensor, Lux sensor, dry contact and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported.

■ With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
■ With 2CH constant brightness control, dimming values and forced operation can be set.
■ The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set.
■ Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
■ 5 Logic inputs: PIR sensor status, brightness value, temperature , dry contact status and external telegrams.
■ 2 logical relations: AND, OR.
■ 2 working modes: Single mode and master / slave mode.
■ 2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control and percentage control.
■ The logic validity can be set by external telegram.



Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm

PIR detection range Φ8m (Installation height: 3m)


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions Φ84×42.6 (mm)
Net weight 50g
Housing material ABS,PC
Installation
Ceiling mount
Protection rating (Compliant with EN 60529) IP20
