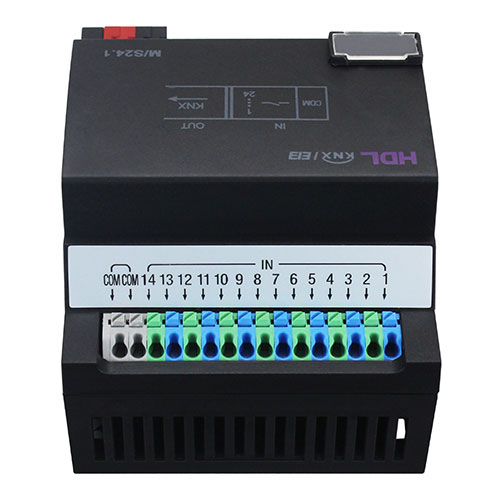

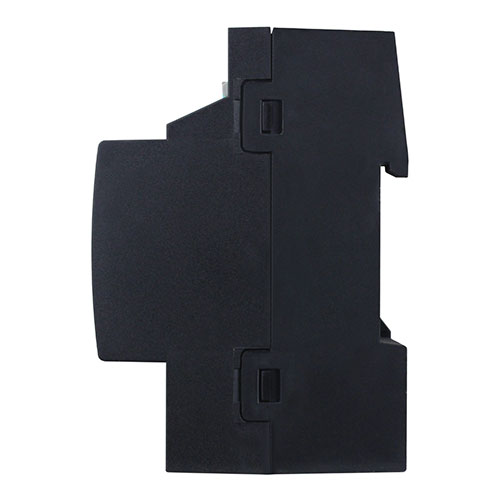

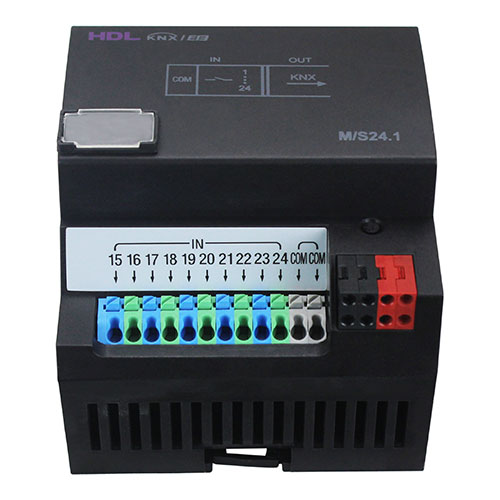

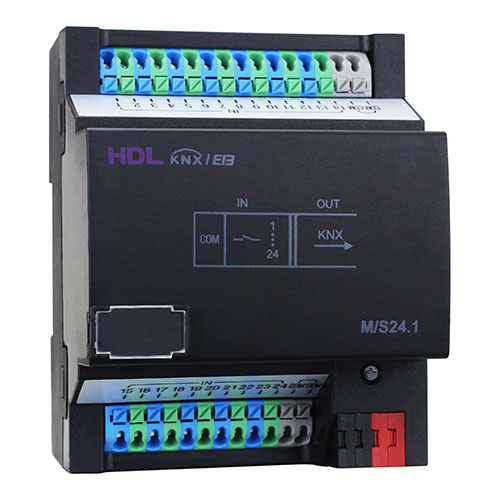

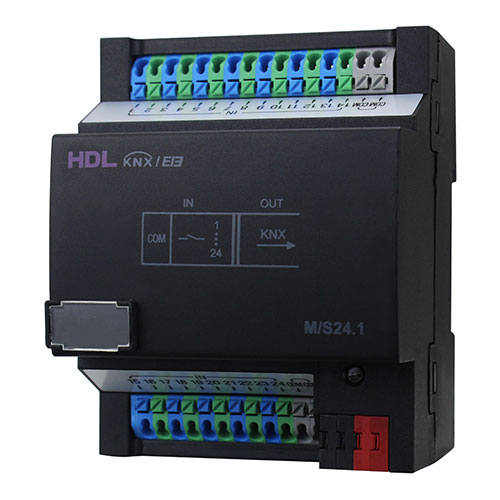

KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module

KNX 24-Zone Dry Contact Module

model:M/S24.1

KNX 24-Zone Dry Contact Module supports 24-channel dry contact input and each of which can be individually controlled with up to 13 different control targets.

KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module
KNX 24-Zone Dry Contact Module

KNX 24-Zone Dry Contact Module supports 24-channel dry contact input and each of which can be individually controlled with up to 13 different control targets.

■ Control types: Switch control, Switch/Dimming control, Shutter control, Flexible control, Scene control, Sequence control, Percentage control, Threshold control, String(14 bytes) control, Forced control, Counter control, Bell control, Combination control.
■ 24-channel dry contact input supported.
■ Dry contact type can be set as mechanical switch or electric switch.


Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Communication KNX/EIB

Cable diameter KNX terminal 0.6 - 0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 90mm×72mm×64mm
Net weight 110g
Housing material Nylon
Installation

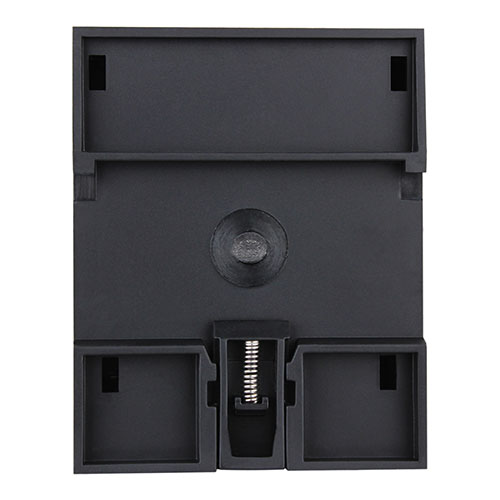

35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
