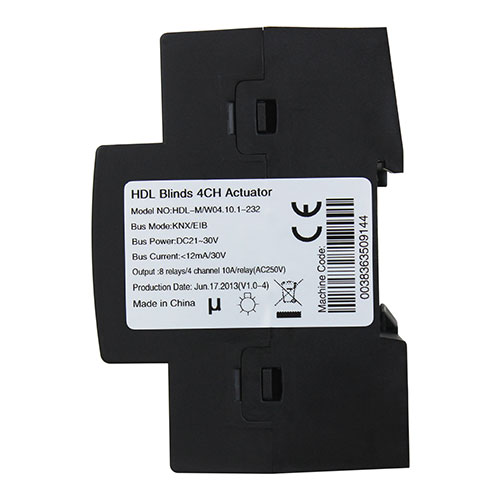

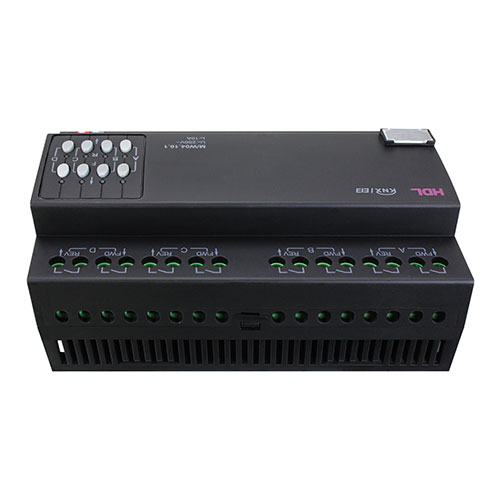

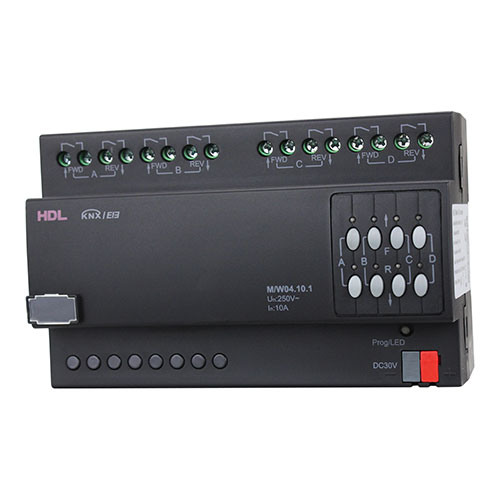

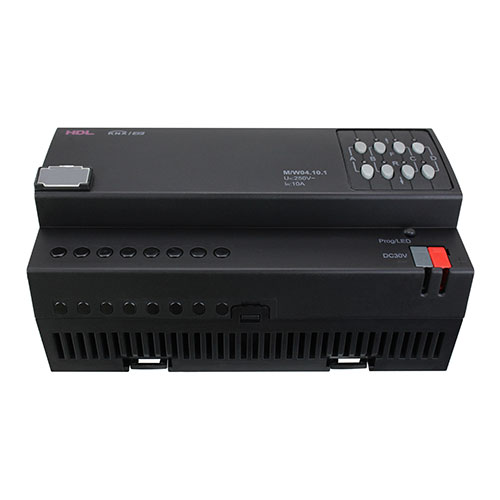

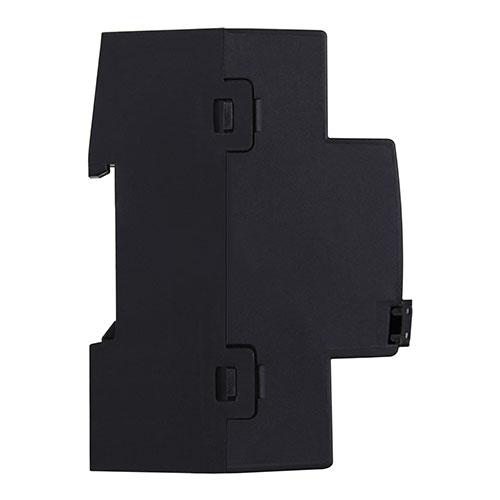

model:HDL-M/W04.10.1

KNX 4CH 10A Curtain Actuator is in full compliance with Chinese and European safety standards and KNX protocol. This series of products have the characteristics of high power (10A), low consumption and high reliability.

4CH 10A Curtain Actuator
4CH 10A Curtain Actuator
4CH 10A Curtain Actuator
4CH 10A Curtain Actuator
4CH 10A Curtain Actuator
4CH 10A Curtain Actuator
4CH 10A Curtain Actuator

KNX 4CH 10A Curtain Actuator is in full compliance with Chinese and European safety standards and KNX protocol. This series of products have the characteristics of high power (10A), low consumption and high reliability.

■ Each channel can control the upward, downward and stop operation of the curtain, and can be controlled manually. Up to 10A output for each channel
■ Control types: Blinds operation mode, Curtain operation mode, Manual operation, Priority setup, Power-on status recall, Power-off status saving, Forced position operation, Limit position control, Status response for position, Operation status, Scene control, Safety control, Automatic control.



Basic Parameters
Working voltage 21~30V DC Class 2
Working current 12mA/30V DC
Input voltage 120V/240V AC (50/60Hz)
Output channel 4CH/10A
Communication KNX
Output terminal Line in, line out cable for each channel 2.5-4mm2
Cable diameter of KNX terminal 0.6 - 0.8mm
Electrical life time >100000

Mechanical life time >100000


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 144mm×90mm×64mm
Net weight 362g
Housing material Nylon (PA66)
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
