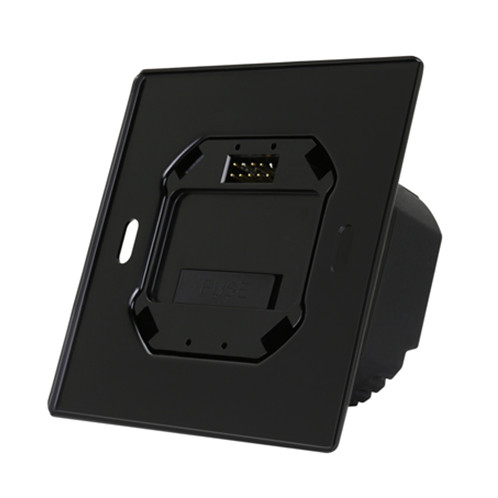

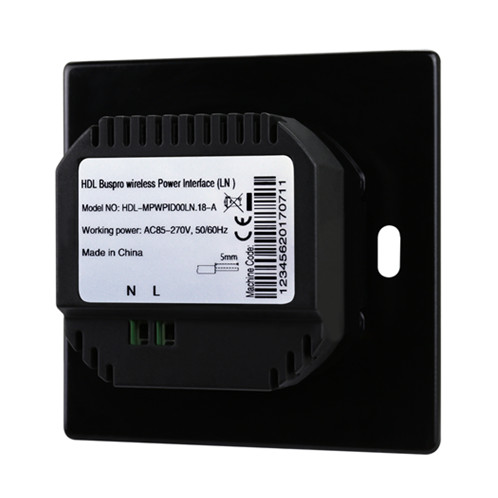

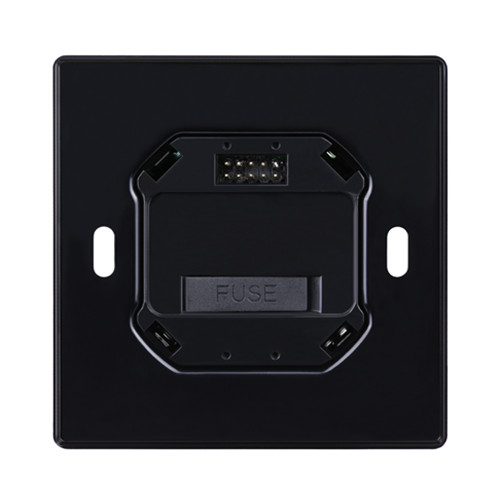

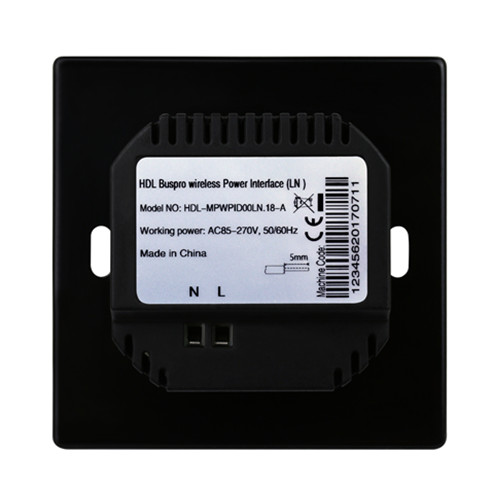

Wireless Power Interface EU (L+N Type) is used in conjunction with the wireless panel and provides working voltage for wireless panel. The power interface is divided into two types: European standard and American standard.
Wireless Power Interface EU (L+N Type) is used in conjunction with the wireless panel and provides working voltage for wireless panel. The power interface is divided into two types: European standard and American standard.
■ Provides DC 5V working voltage for wireless panels
■ Overheat protection for power interface chip
Basic Parameters
Input voltage AC100-240V(50/60Hz)
Maximum output current 100mA / 5V DC
Fuse 2A, aR type
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions
80×80×39(mm)(EU)
Net weight
128g(EU)
Housing material Flame-retardant nylon, iron
Installation Wall box
Protection rating
(Compliant with EN 60529) IP20
Fire and neutral wire 2.5mm2 copper cable
Wireless Power Interface US (L+N Type) is used in conjunction with the wireless panel and provides working voltage for wireless panel. The power interface is divided into two types: European standard and American standard.
MPWIR03.16-A Wireless power interface, which is fire and null wire for relay, works with wireless panel, and has 3CH relay output.
Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch.There are two sizes, EU and US.
