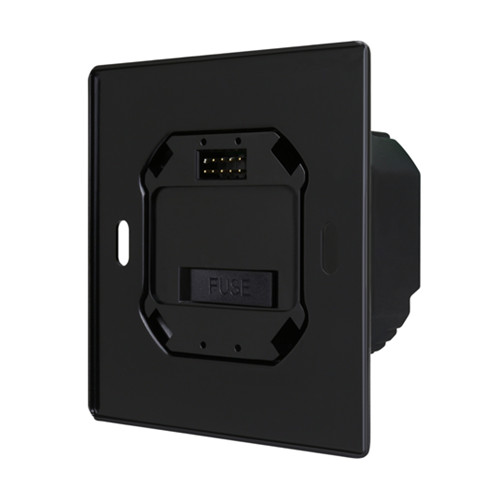

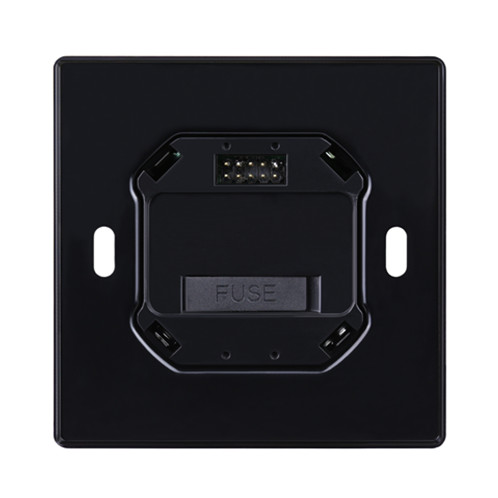

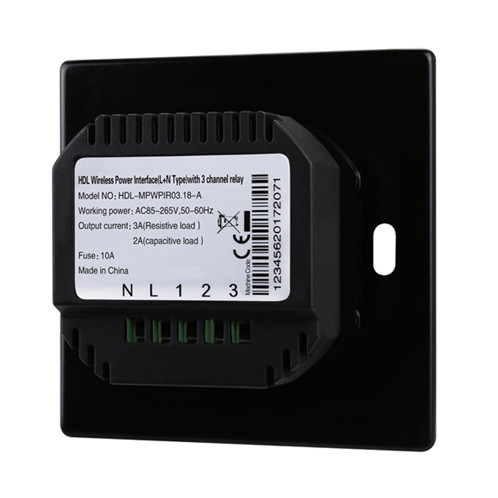

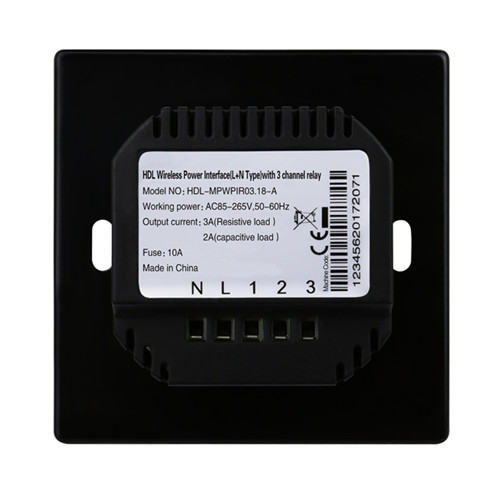

HDL– MPWPIR03.18-A Wireless power interface, which is fire and null wire for relay, works with wireless panel, and has 3CH relay output
HDL– MPWPIR03.18-A-A Wireless power interface, which is fire and null wire for relay, works with wireless panel, and has 3CH relay output
■ Supply DC5V power for wireless panels
■ 3 relay output channel
■ Power protection
Electrical Parameters:
Product name Fire and null wire for 3CH relay
Product number
HDL-MPWPIR03.18-A
Working voltage AC85-270V 50/60Hz
Output channel 3CH relay
Output current
3A 250VAC(resistive load)
2A 250VAC(capacitive load)
Mechanical life time of relay 1×107 times
Electronic life time of relay 1×105 times
Fuse 10A
Environmental Conditions:
Working temperature -5℃~45℃
Working relative humidity <90%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved:
CE
RoHS
Product Information:
Dimensions
80×110.5×39(mm)(US)
Weight 128g/138g
Housing material Inflaming relative nylon, iron
Installation
wall box (the depth of wall box should not less than 45mm)
Protection rating IP20
Fire and null wire 1~2.5mm2 copper cable
Load wire 1~2.5mm2 copper cable
