4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module

4CH Wireless Dry Contact Module

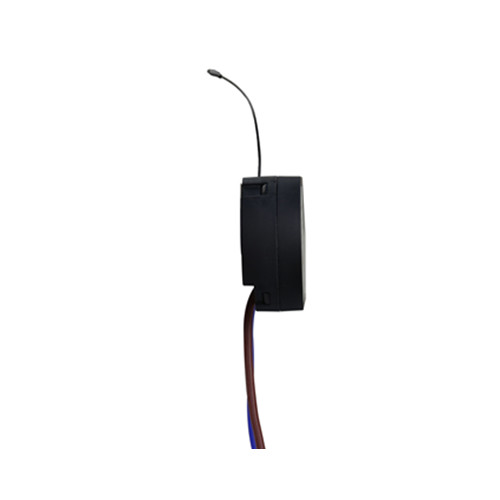

model:HDL-MPS04-RF.28

4CH Wireless Dry Contact Module contains 4-channel dry contact inputs and 4-channel LED outputs. Working with wireless gateway, the module can be used for controlling different targets.

4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module
4CH Wireless Dry Contact Module

4CH Wireless Dry Contact Module contains 4-channel dry contact inputs and 4-channel LED outputs. Working with wireless gateway, the module can be used for controlling different targets.

■ 4CH dry contact inputs and 4CH LED outputs.

■ 4CH dry contact can be used for controlling targets like dimming and switching, and supports electronic switches and mechanical switches.

■ Switching modes supported by dry contact: Mechanical switch, Single on, Single off, Single on/off,Combination on, Combination off, Combination on/off, Multi-function, Parallel switch.

■ Control targets: Scene, Sequence, Universal switch, Single channel lighting control, Broadcast scene,Broadcast channel, Curtain switch, GPRS control switch, Panel control, Music control.

■ Supports security function.

■ Compliant with IEEE.802.15.4 standard.

■ Supports online upgrade.

■ Supports easy programming via HDL ON APP.


Basic Parameters

Input voltage

AC100-240V (50/60Hz)

Power consumption

0.3W max.

Communication

Buspro Wireless

Wireless transmission power

+10dbm

Wireless sensitivity

-90dbm

Indoor communication distance

≤30m

RSSI (Received Signal Strength Indication)

>-80dbm


Frequency Allocation

WPAN (China)

780 to 786MHz

SRD (Europe)

864 to 870MHz

ISM (North America)

904 to 928MHz

Default PSK

HDL-SecurityKey0


External Environment

Working temperature

-5℃~45℃

Working relative humidity

≤90%

Storage temperature

-20℃~60℃

Storage relative humidity

≤93%


Specifications

Dimensions

52x46.5x20(mm)

Net weight

31g

Housing material

PC, ABS

Installation

Wall box

Protection rating (Compliant with EN60529)

IP20

Fire and neutral wire

1.5mm2 (the module provides 15cm wire)

Load cable

1.5mm2 (the module provides 15cm wire)

Stripping length

5~7mm
