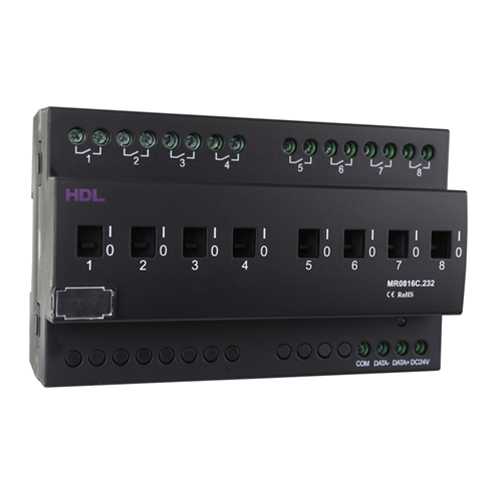

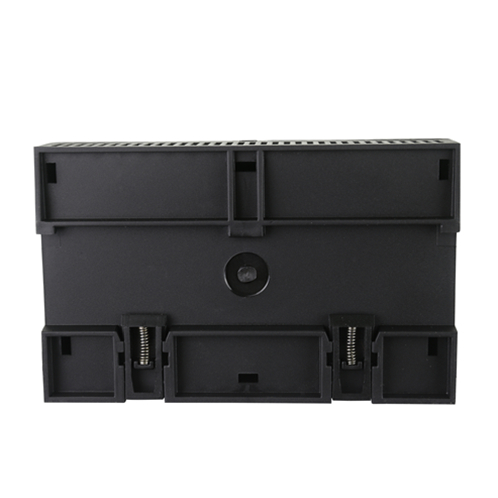

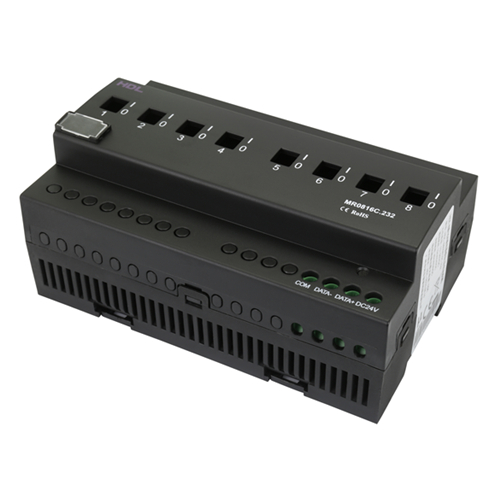

8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection

8CH 16A High Power Switch Actuator with Current Detection

model:HDL-MR0816C.232

8CH 16A High Power Switch Actuator with Current Detection has 8 channels (16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
8CH 16A High Power Switch Actuator with Current Detection
  8CH 16A High Power Switch Actuator with Current Detection has 8 channels (16A for each channel) and
50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control  switches and supports scene and sequence control.


8-channel relay output unit
Scene control and sequence control
Up to 8 separate zones
16 scenes for each zone, scene running time up to 60 minutes
2 sequences for each zone, up to 8 steps for each sequence
Light protection delay for each channel (0-60 minutes)
Mass turn-on delay for each channel(0-25 seconds)
Manual switch for each channel
Stair lamp function of the channel settable
Channel current, used time of load and alarm status of each channel can be detected.
Selected scene or scene before power off automatically activated when device restarts
Specified scene or no operation for options when power off
HDL Buspro communication
Supports online upgrade


Basic Parameters
Working voltage: 24~30V DC
Working current: 35mA/24V DC
Input voltage: 120V/240V AC (50/60Hz)
Output channel: 8CH/16A
Relay: 50A Magnetic latching relay
Maximum current of each channel:16A
Electronic life time of relay: >60000 (Resistance load)
Protection: Connect a breaker in each channel


External Environment

Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%


Specifications

Dimensions :144mm×90mm×64mm
Net weight : 567g
Housing material : Nylon, PC
Installation: 35mm DIN rail installation
Protection rating (Compliant with EN 60529) :IP20


Recommended Load Types and Power

240V, 16A, Resistive, 100,000 cycles, 40°C;
240V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
240V, 16A, Standard Ballast, 30,000 cycles, 40°C;
240V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
120V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
120V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
120V, 16A, Standard Ballast, 30,000 cycles, 40°C;
