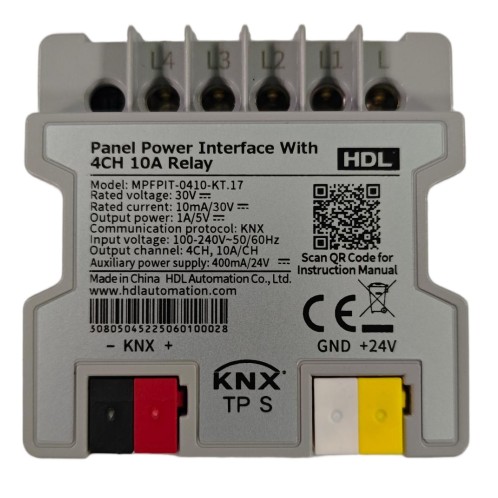

The HDL KNX 4CH10A relay base communicates and controls via the KNX protocol. When installed on the panel, it is placed in an 86 base box and serves as the power base for the panel. It can control the relay circuits of the base through the KNX bus, enabling intelligent control of household lighting, curtains, fans, sockets, and other electrical devices.
The HDL KNX 4CH10A relay base communicates and controls via the KNX protocol. When installed on the panel, it is placed in an 86 base box and serves as the power base for the panel. It can control the relay circuits of the base through the KNX bus, enabling intelligent control of household lighting, curtains, fans, sockets, and other electrical devices.
■ It can control the relay circuits of the base through the KNX bus, enabling intelligent control of household lighting, curtains, fans, sockets, and other electrical devices.
Basic Parameters
Working voltage:242~30V DC
Input voltage: AC100-240V (50/60Hz)
Output channel:4CH,10A/CH
Communication :KNX
External Environment
Working temperature:-5℃~45℃
Working relative humidity:≤90%
Storage temperature:-20℃~60℃
Storage relative humidity:≤93%
Specifications
Dimensions :68.2×68.85×26.62 (mm)
Net weight :77.5g
Housing material:PC
Installation :Wall box
Protection rating (Compliant with EN 60529):IP20
