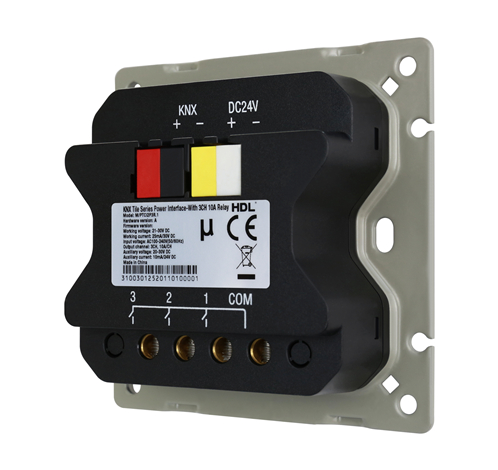

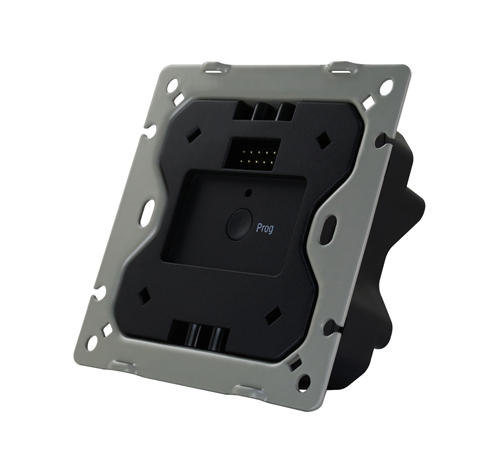

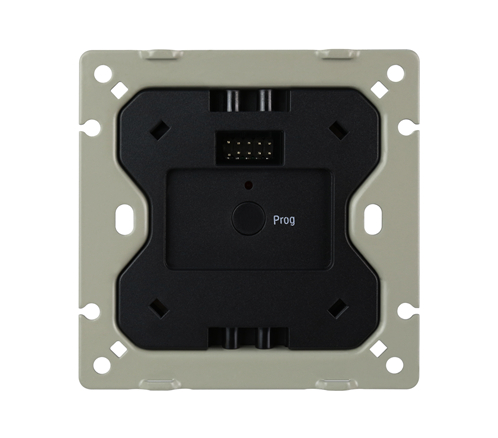

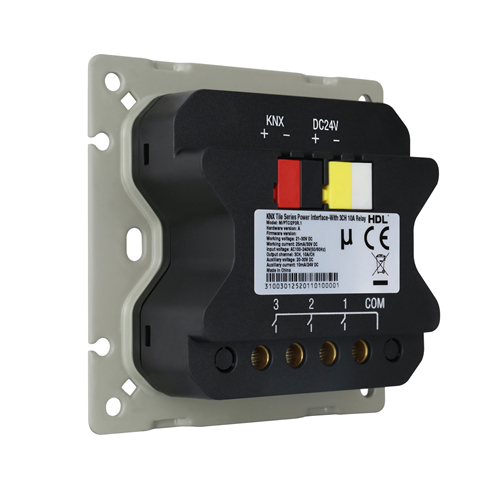

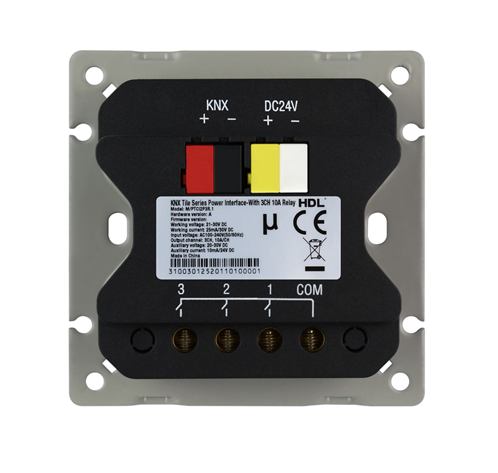

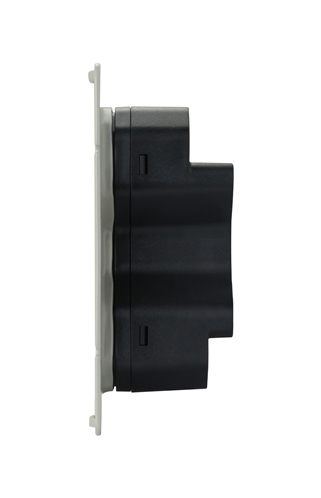

KNX Tile Series Power Interface-With 3CH 10A Relay works in conjunction with KNX Tile Display, etc. and provides working power and communication signals to the panel.
KNX Tile Series Power Interface With 3CH 10A Relay works in conjunction with KNX Tile Display, etc.and provides working power and communication signals to the panel.
Basic Parameters
Working voltage:21~30V DC
Working current:25mA/30V DC
Auxiliary voltage:20~30V DC
Auxiliary current:10mA/24V DC
Input voltage: AC100-240V (50/60Hz)
Output channel:M/PTCI2P3R.1:3CH,10A/CH
Communication :KNX
Cable diameter of KNX terminal:0.6-0.8mm
External Environment
Working temperature:-5℃~45℃
Working relative humidity:≤90%
Storage temperature:-20℃~60℃
Storage relative humidity:≤93%
Specifications
Dimensions :81.4×81.4×32.4 (mm)
Net weight :92g
Housing material:Iron, PC
Installation :Wall box
Protection rating (Compliant with EN 60529):IP20
KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.
KNX Panel Power Interface EU/US (with External Power Supply) has 2 power interfaces. The KNX bus power interface is a standard KNX communication interface; the auxiliary power interface is connected to an external power supply to provide an auxiliary power input for the matching panel.
KNX Panel Power Interface EU/US (with External Power Supply) has 2 power interfaces. The KNX bus power interface is a standard KNX communication interface; the auxiliary power interface is connected to an external power supply to provide an auxiliary power input for the matching panel.
