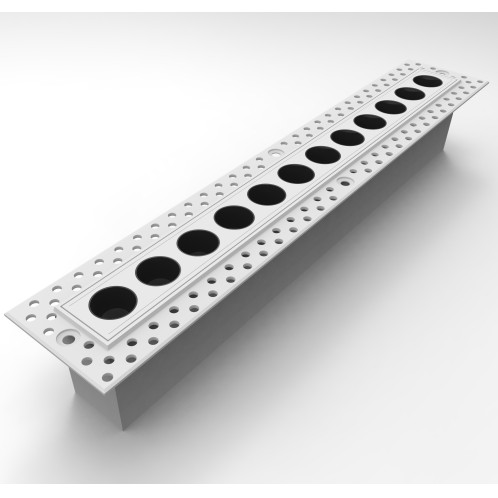

12-Bulb Pre-embedded Mini Grid Light (Single-color temperature dimming)
• 12-Bulb Pre-embedded Mini Grid Light with white painted finish (RAL 9016) and black reflector;
• Work with DALI/0-10V/TRIAC dimming driver;
• LED 20W;
• Measurement 296.4mm x 52.6mm; height of the profile inset 52.6mm;
• High color rendering at an index of CRI90;
• After a lifetime of 50000h min. 80% of the luminous flux;
• 5 years warranty;
• Precise beam characteristic with 15°/24°/36° beam angles;
• Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<1<>5);
• Degree of housing protection according to DIN EN 60529 (IP20).
• Indoor
• Accent Light
• Pre-embedded
• Profile Inset
• Version: rectangle
• Housing: white
• Reflector: black
• System Output: 1200lm
• IP 20
LED
• 2700K/3000K/3500K/4000K/5000K
• CRI>90
• 50000h@L80B10
• SDCM: 3
Optics
• Beam angle: 15°/24°/36°
• UGR <1<>5
Electric
• LED Driver: none
• LED Power: 20W
• 36V
• 500mA
Dimensions
• Measurement: 296.4mm x 52.6mm
• Height: 52.6mm
• Cutout: 275mm x 32mm
