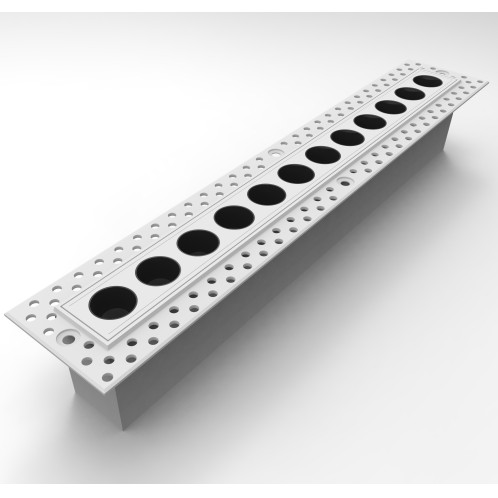

20W 12-Bulb Mini Pre-embedded Grid Light is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
20W 12-Bulb Mini Pre-embedded Grid Light is a flicker-free LED light with constant current. The housing material is aluminum alloy and has a novel structure. Mainly suitable for indoor places such as hotels, luxury homes, clubs, model rooms, sales offices, museums, restaurants, shopping malls, shops, etc. that require special lighting.
• 12-Bulb Pre-embedded Mini Grid Light with white painted finish (RAL 9016) and black reflector;
•Work with DALI/0-10V/TRIAC dimming driver or built-in ON/OFF driver;
• LED 20W;
• Measurement 296.4mm x 52.6mm; height of the profile inset 52.6mm;
• High color rendering at an index of CRI90;
• After a lifetime of 50000h min. 80% of the luminous flux;
• Precise beam characteristic with 15°/24°/36° beam angles;
• Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<15);
• Degree of housing protection according to DIN EN 60529 (IP20).
• 2800K-6000K
• CRI>90
• 50000h@L80B10
• SDCM: 3
Optics
• Beam angle: 15°/24°/36°
• UGR <15
Electric
• LED Driver: None/ON-OFF driver
• LED Power: 20W
• 36V
• 500mA
Dimensions
• Measurement: 296.4mm x 52.6mm
• Height: 52.6mm
• Cutout: 275mm x 32mm
