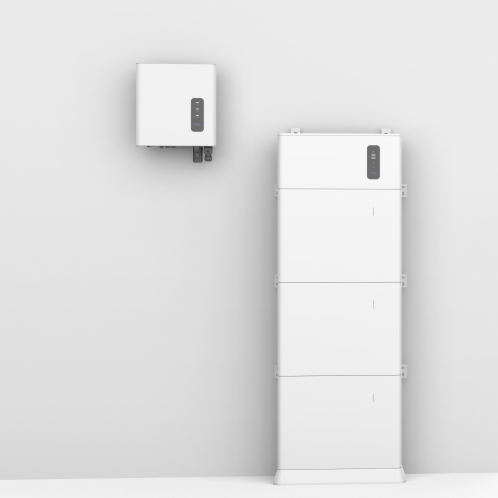

Our single-phrase Inverter harnesses the sun's energy efficiently and sustainably. It achieves peak efficiency at 97.6%, ensuring optimal power utilization. In addition, with superior MPPT efficiency exceeding 99.9%, it ensures top-tier performance under diverse conditions, maximizing solar energy use sustainably.
1. High conversion efficiency and fast start-up
2. Strong adaptability and stability with load
3. Remotely power-on & off via cloud platform & mobile App
4. Three basic modes for end users to check via mobile App / the display screen of the product, including SELF CONSUME, Backup Power, PEAK SHIFT.
Model | ME-GSE-S5K |
Max.PV Input Voltage | 560V |
Max.PV Input Current | 15A / 15A |
MPPT Voltage Range | 90-550V |
Isc PV | 15A/15A |
Battery Type | Li-ion |
Battery Nominal Voltage | 380V |
Battery Voltage Range | 360-550V |
Max.charge/discharge Current | 15A/15A |
a.c. Output Nominal Voltage | 220/230/240V |
a.c. Nominal Operating Frequency | 50/60Hz |
a.c. Output Rated Power | 5kW |
a.c. Output Max. Current | 22.7 A |
Power Factor | 0.85(lagging)~0.85(leading) |
Operating Temperature Range | -25℃~+60℃ |
Inverter Topology | Non-Isolation |
Dimension | 376*145*396mm |
Net Weight | 16kg |
Ingress Protection | IP65 |
Protection Class | I |
