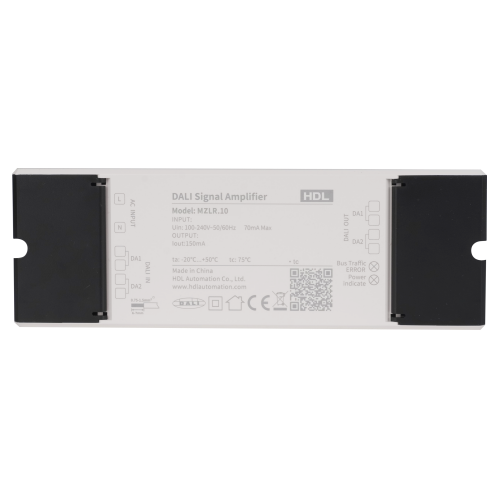

DALI Signal Amplifier is a DALI signal amplifier with integrated bus power supply that increases the maximum line length from 300 to 600 metres.
DALI Signal Amplifier is a DALI signal amplifier with integrated bus power supply that increases the maximum line length from 300 to 600 metres.
Key Functions:
1.DALI repeater with integrated DALI power supply.
2.Either radially arranged network layout or cascaded system mounting operated with single master.
3.Device to enhance the maximum DALI cable length from 300m up to 600m.
4.Enhancement and Transmission of the DALI-signals (bidirectional).
5.Galvanic separation between DALI circuits.
6.restricted cascading (Series wiring) of multiple repeaters in multi-master operating mode
7.The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subordinate circuits at will.
8.For each subordinate DALI circuits no extra DALI power supply required
Input/output:DALI/DALI
Wire cross section:0.5~1.5 mm²
Lifetime:50,000h@25°C
