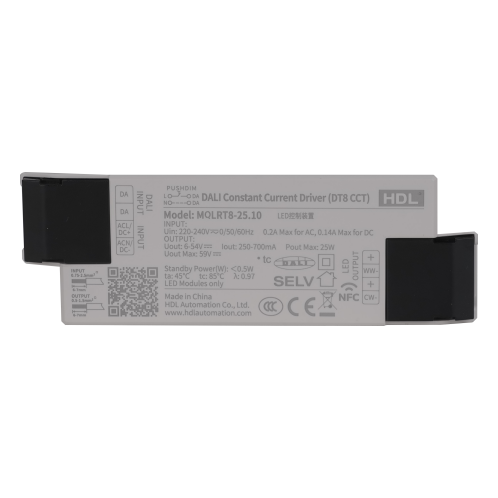

DALI Constant Current Driver(DT8 CCT) is a DT8 color temperature, voltage 6-58V, current 250-700mA, maximum output power 25W DALI-2 drive.
DALI Constant Current Driver(DT8 CCT) is a DT8 color temperature, voltage 6-58V, current 250-700mA, maximum output power 25W DALI-2 drive.
Key Functions:
1.2-channel output for switching , dimming and adjusting color temperature of LED luminaires
2.Conforms to DALI-2 certification standards, DALI DT8 devices
3.Comfortable dimming effect, dimming depth as low as 0.01%, smooth depth dimming
4.Current selection via NFC configuration tool (250-700mA)
5.Current settings down to 0.1mA , current accuracy down to 1% (full load)
6.High power factor and efficiency
7.DALI address/group/scene can be set via NFC configuration tool
8.Fault feedback mechanism, short circuit, overload, overheat protection
9.Class II power supply, fully isolated moulded case
10.IP20 rating for indoor LED lighting applications
Dimensions (W X H X D) | 120×41×28mm(See Figure 2 ) |
---|---|
Net weight | 165g±5%/PCS |
Housing material | Nylon, PC |
Installation | Flat surface placement, screw fixing |
IP degree (compliant with EN 60529) | IP20 |
Approved | RoHS、CE、CCC |
