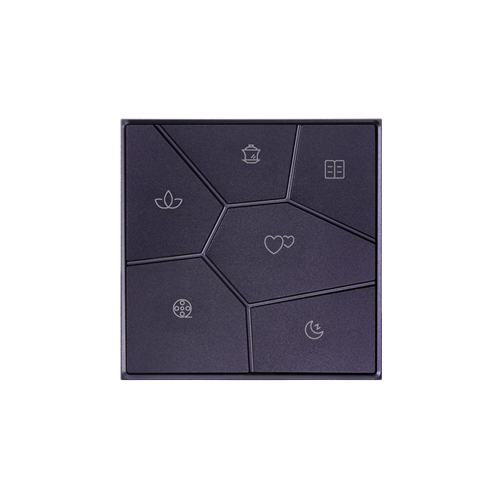

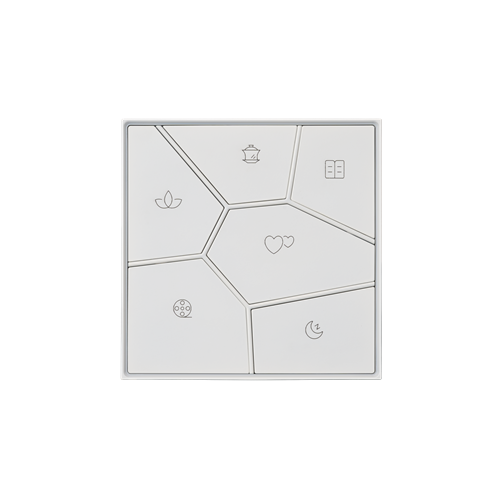

Inkslab Series 1/2/4/6 Button Smart Panel features mechanical buttons and supports multiple press modes and button control types. It can achieve basic control functions such as switching, dimming, color temperature, RGB control, curtains, scenes, etc., and has a built-in temperature sensor that can detect the local ambient temperature and upload it to the bus; Each group of buttons can be customized with laser engraving and support RGB indicator function for buttons. T
Inkslab Series 1/2/4/6 Button Smart Panel features mechanical buttons and supports multiple press modes and button control types. It can achieve basic control functions such as switching, dimming, color temperature, RGB control, curtains, scenes, etc., and has a built-in temperature sensor that can detect the local ambient temperature and upload it to the bus; Each group
of buttons can be customized with laser engraving and support RGB indicator function for buttons.
Light control: switch, dimming, color temperature and RGB
Curtain control: supports curtain opening, closing, stopping, and percentage control
Scene control: supports one click scene control
Built in temperature sensor: supports sending local temperature values to the bus, used for inputting scene and
automation control conditions
RGB LED indicator function: supports custom button indicator light brightness and color configuration
Button locking function: supports panel button locking function to prevent external personnel from manually controlling
the panel or children from accidentally touching it
Proximity detection: Once the sensor detects near human motion, the touch screen automatically wakes up
Button text laser engraving customization: supports custom button laser engraving, which can engrave text size and
content according to user needs, making it easy to identify the target controlled by the corresponding button
Rated voltage 24V DC
Rated current
1 Button:24mA/24V DC
2 Buttons:29mA/24V DC
4 Buttons:40mA/24V DC
6 Buttons:47mA/24V DC
Communication protocol HDL Buspro
Cable diameter of Buspro terminal 0.6-0.8mm
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
