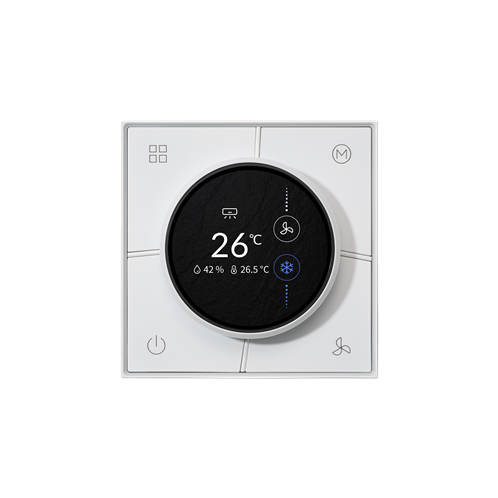

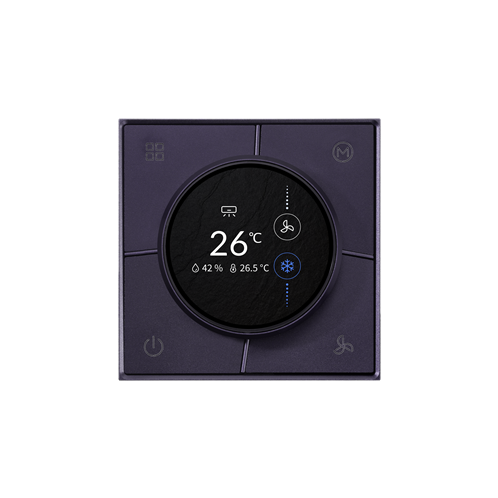

Inkslab Series Knob Temperature Control Panel(hereinafter referred to as the “product” or “device”) features mechanical buttons and a knob for controlling AC, fresh air and floor heating. The color and brightness of the button indicator light can be customized through HDL Studio to meet different user needs
Inkslab Series Knob Temperature Control Panel(hereinafter referred to as the “product” or “device”) features mechanical buttons and a knob for controlling AC, fresh air and floor heating. The color and brightness of the button indicator light can be customized through HDL Studio to meet different user needs
Built-in temperature and humidity sensor: supports sending local temperature and humidity values to the bus, used for
inputting scene and automation control conditions
Built-in proximity sensor for detecting human motion. Once the sensor detects nearby human motion, the touch screen
automatically wakes up
Custom color and brightness of the button indicator light, set through HDL Studio
Custom brightness of knob light ring, set through HDL Studio
Separate pages for air conditioning, floor heating and fresh air, each controlling only one device;
Panel control function: device selection; air conditioning switch/mode/temperature/wind speed setting; floor heating
switch/temperature/mode setting; fresh air switch/speed/mode setting.
Button lock/unlock function
Support HDL Buspro online upgrade
Rated voltage 24V DC
Rated current 62mA/24V DC
Communication protocol Buspro
Cable diameter of Buspro terminal 0.6-0.8mm
Working temperature -5℃~45℃
Working relative humidity ≤90%, non-condensed
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Tile Series Smart Door Bell 2.1 is a door bell touch panel which is installed outside the room by the door. It can control the panel to indicate users' requirements via the door bell panel, such as DND, Please Wait and Clear Up Room. Custom settings can be made through HDL Studio software to meet different user needs. (Tile Series Smart Door Bell 2.1 includes both plastic and metal versions.)
