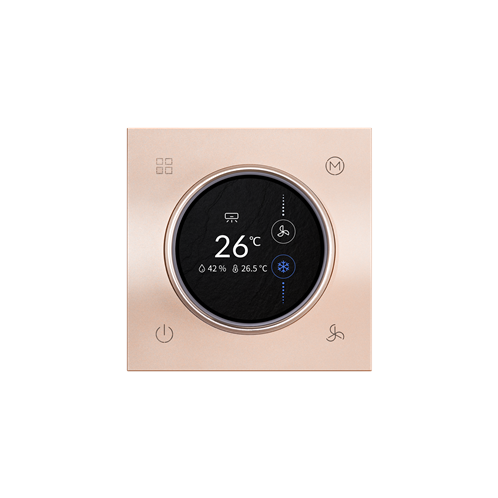

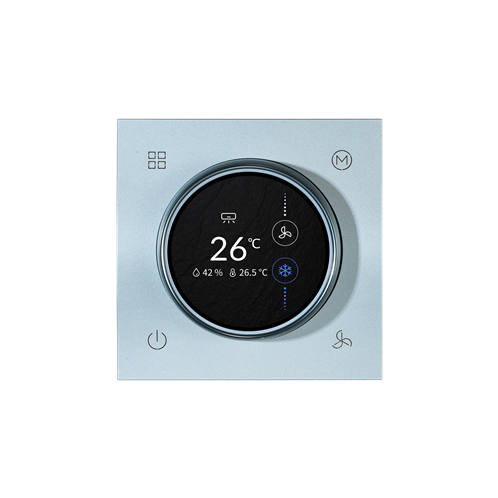

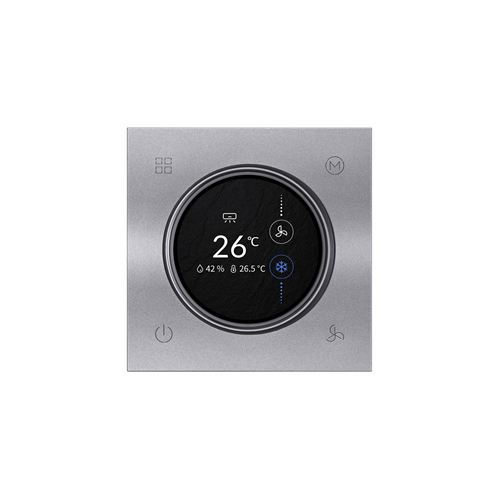

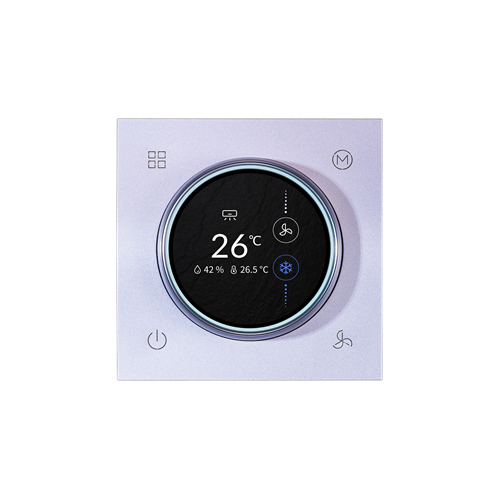

Eave Series Knob Temperature Control Panel(hereinafter referred to as the “product” or “device”) features mechanical buttons and a knob for controlling AC, fresh air and floor heating. The color and brightness of the button indicator light can be customized through HDL Studio to meet different user needs.
Eave Series Knob Temperature Control Panel(hereinafter referred to as the “product” or “device”) features mechanical
buttons and a knob for controlling AC, fresh air and floor heating. The color and brightness of the button indicator light can be
customized through HDL Studio to meet different user needs.
Built-in temperature and humidity sensor: supports sending local temperature and humidity values, used for inputting
scene and automation control conditions
Proximity detection: Once the sensor detects nearby human motion, the touch screen automatically wakes up.
Custom color and brightness of the button indicator light, set through HDL Studio
Custom brightness of knob light ring, set through HDL Studio
Separate pages for air conditioning, floor heating and fresh air, each controlling only one device;
Panel control function: device selection; air conditioning switch/mode/temperature/wind speed setting; Floor heating
switch/temperature/mode setting; Fresh air switch/speed/mode setting.
Button lock/unlock function
Support HDL Buspro online upgrade
Dimensions (W X H X D) 86×86×8.1/20.22(mm)
Net weight 146g
Housing material: Aluminum alloy
Installation Wall box (See Figure 6)
IP degree (compliant with EN 60529) IP20
Tile Series Smart Door Bell 2.1 is a door bell touch panel which is installed outside the room by the door. It can control the panel to indicate users' requirements via the door bell panel, such as DND, Please Wait and Clear Up Room. Custom settings can be made through HDL Studio software to meet different user needs. (Tile Series Smart Door Bell 2.1 includes both plastic and metal versions.)
