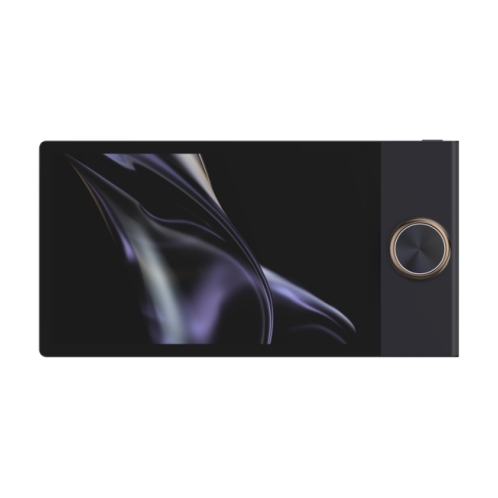

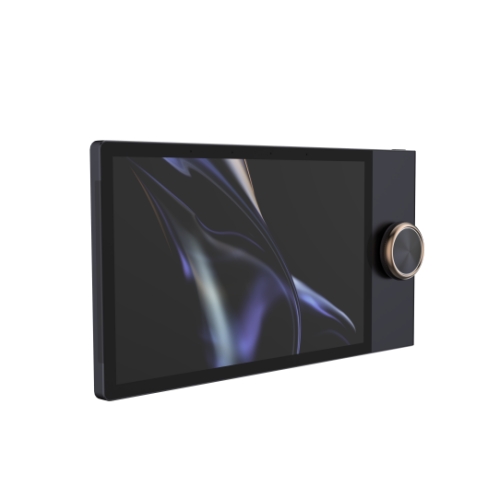

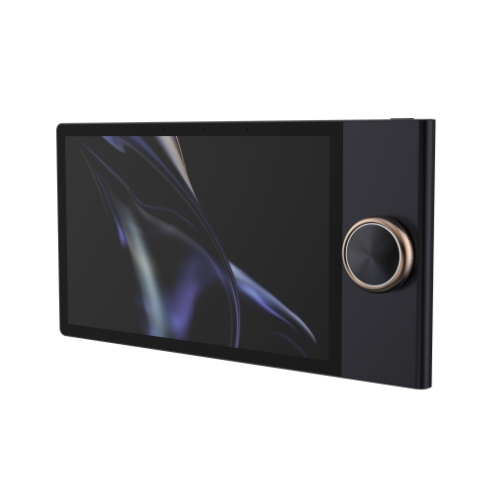

Source 10 is a smart home control center with a 10-inch capacitive control screen, achieving intelligent linkage control of the lights, curtains, fresh air, music, scenes, and so on through the knob and interactive interfaces.
Source 10 is a smart home control center with a 10-inch capacitive control screen, achieving intelligent linkage control of the lights, curtains, fresh air, music, scenes, and so on through the knob and interactive interfaces.
1. Supporting multiple Source intelligent central control at the same time; master-slave gateway function
2. Knob control with rotary use
3. Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up.
4. Physical buttons for turning off or enabling the microphone and the display with one touch.
5. This device must be used with the base, which can be optional with three power interfaces.
Power consumption ≤15W
Input voltage Zigbee interface: 100 ~ 240V AC, 50/60Hz; Buspro interface: 18-28V DC;
KNX interface: 21 - 30V DC
KNX auxiliary voltage 18 - 28V DC
Output channel Zigbee / Buspro / KNX interface:2CH,3A/CH; Resistive load: ≤660W/CH; Capacitive load: ≤200W/CH
Communication protocol HDL LINK, WiFi 2.4G
Tile Series Smart Door Bell 2.1 is a door bell touch panel which is installed outside the room by the door. It can control the panel to indicate users' requirements via the door bell panel, such as DND, Please Wait and Clear Up Room. Custom settings can be made through HDL Studio software to meet different user needs. (Tile Series Smart Door Bell 2.1 includes both plastic and metal versions.)
