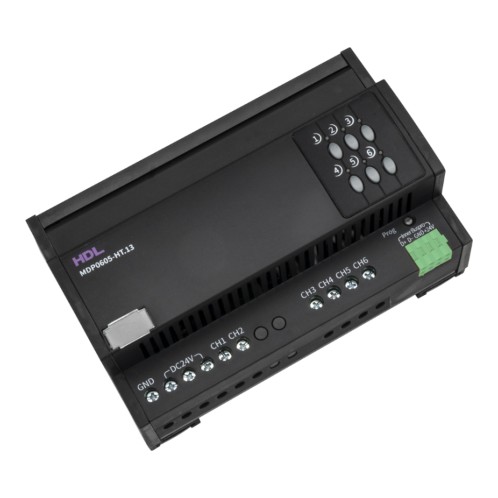

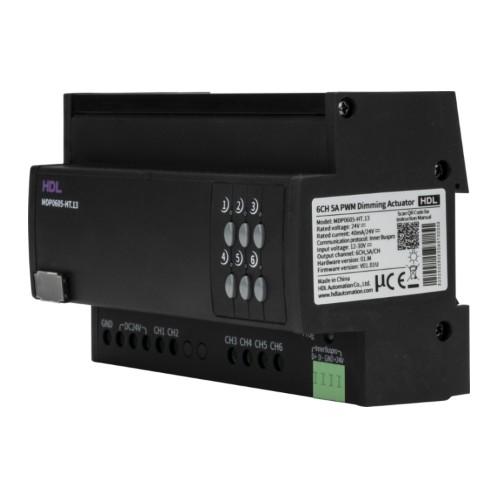

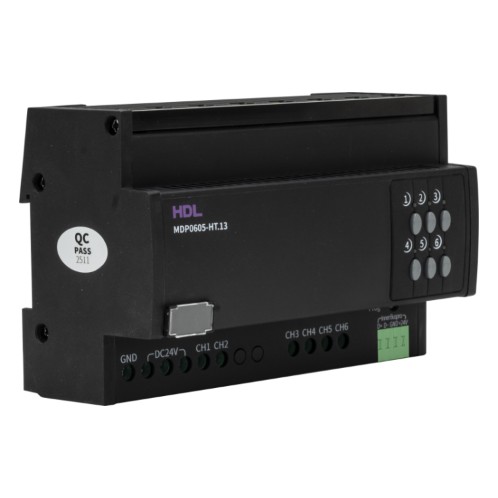

Used with room control units, 6CH 5A PWM Dimming Actuator can be used to control the LED light which has constant voltage. It has 6 output channels, each channel has a bypass button for manual control.
Used with room control units, 6CH 5A PWM Dimming Actuator can be used to control the LED light which has constant voltage. It has 6 output channels, each channel has a bypass button for manual control.
Key Functions:
Low, high, max threshold for each channel, applicable for different load.
Bypass button for manual control is available for each channel.
Short channel and over current protection are available.
Maximum current in each channel: 5A
PWM constant voltage output
Rated voltage 24V DC
Rated current 40mA / 24V DC
LED input voltage 12~30V DC
Communication interface Inner Buspro
LED output channel 6CH, 5A/CH
Working temperature -5℃ ~ 45℃
Working relative humidity ≤90%RH, non-condensed
Storage temperature -20℃ ~ 60℃
Storage relative humidity ≤93%RH
