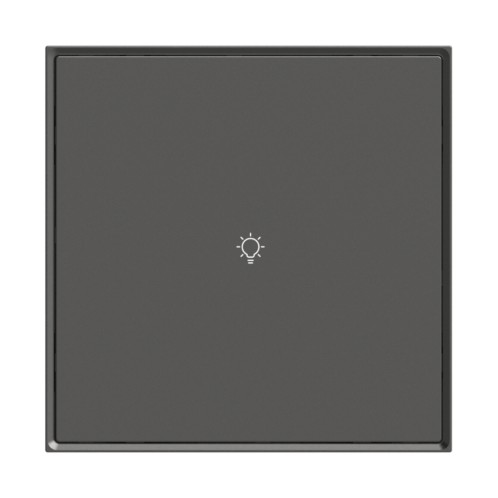

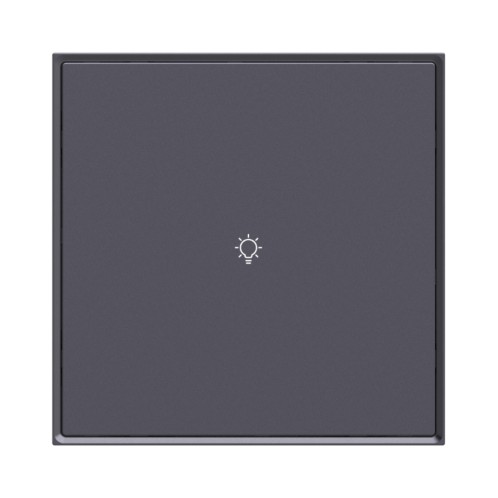

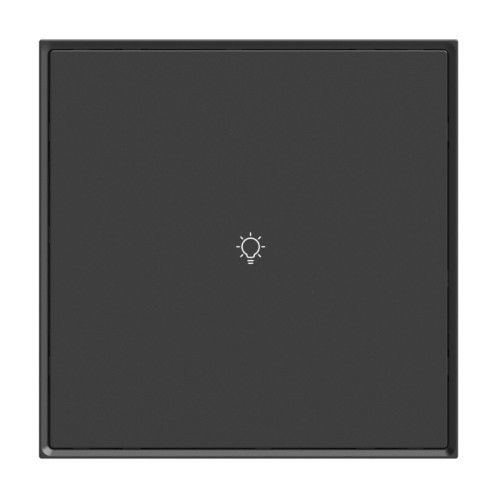

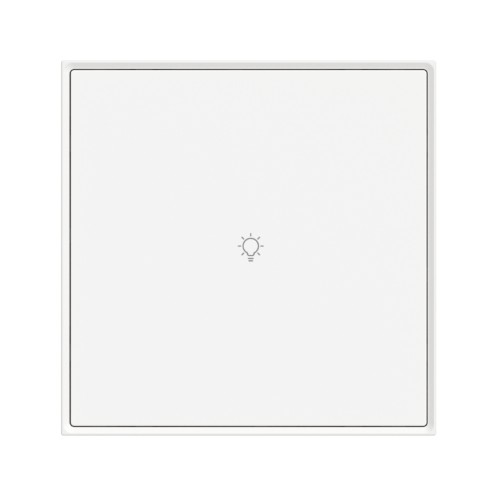

Inkslab Series Buttons Smart Panel(KNX)adopts mechanical keys and supports multiple actuation modes and control types. It delivers basic functions: switching, dimming, colour temperature tuning, RGB control, curtain operation and scene recall. A built-in temperature sensor measures local ambient temperature and transmits data to the bus. Each button supports custom laser engraving and RGB status indication. Indicator colour and brightness are configurable via ETS software to accommodate various requirements. Available in plastic and metal versions, Yan series panels feature robust performance and broad applicability, making them an ideal solution for modern smart home designs.
Inkslab Series Buttons Smart Panel(KNX)adopts mechanical keys and supports multiple actuation modes and control types. It delivers basic functions: switching, dimming, colour temperature tuning, RGB control, curtain operation and scene recall. A built-in temperature sensor measures local ambient temperature and transmits data to the bus. Each button supports custom laser engraving and RGB status indication. Indicator colour and brightness are configurable via ETS software to accommodate various requirements. Available in plastic and metal versions, Yan series panels feature robust performance and broad applicability, making them an ideal solution for modern smart home designs.
Lighting Control: Switching, dimming, colour temperature tuning, RGB control.
Curtain Control: Open, close, stop and percentage positioning.
Scene Control: One-touch scene recall.
Built-in Temperature Sensor: Transmits local temperature to the bus as trigger input for scenes and automation.
RGB LED Indication: Configurable brightness and colour for button indicators.
Button Lock: Locks panel buttons to prevent unauthorised or accidental operation.
Proximity Sensing: Button LEDs auto-sleep and wake on human presence detection.
Custom Laser Engraving: Customisable text content and size for button identification.
Base Compatibility: Optional power-only, 2-channel and 4-channel relay bases are available. Note that base integrated relays cannot drive HVAC equipment. Standalone relay modules or dedicated HVAC modules are required for HVAC control.
Dimensions (W X H X D): 86mm x 86mm x 10mm(Base not included.)
Net weight: Plastic: 64g / Metal: 110g
Housing material: Plastic / Aluminium
Installation: Wall box
IP degree(compliant with EN 60529): IP 20
