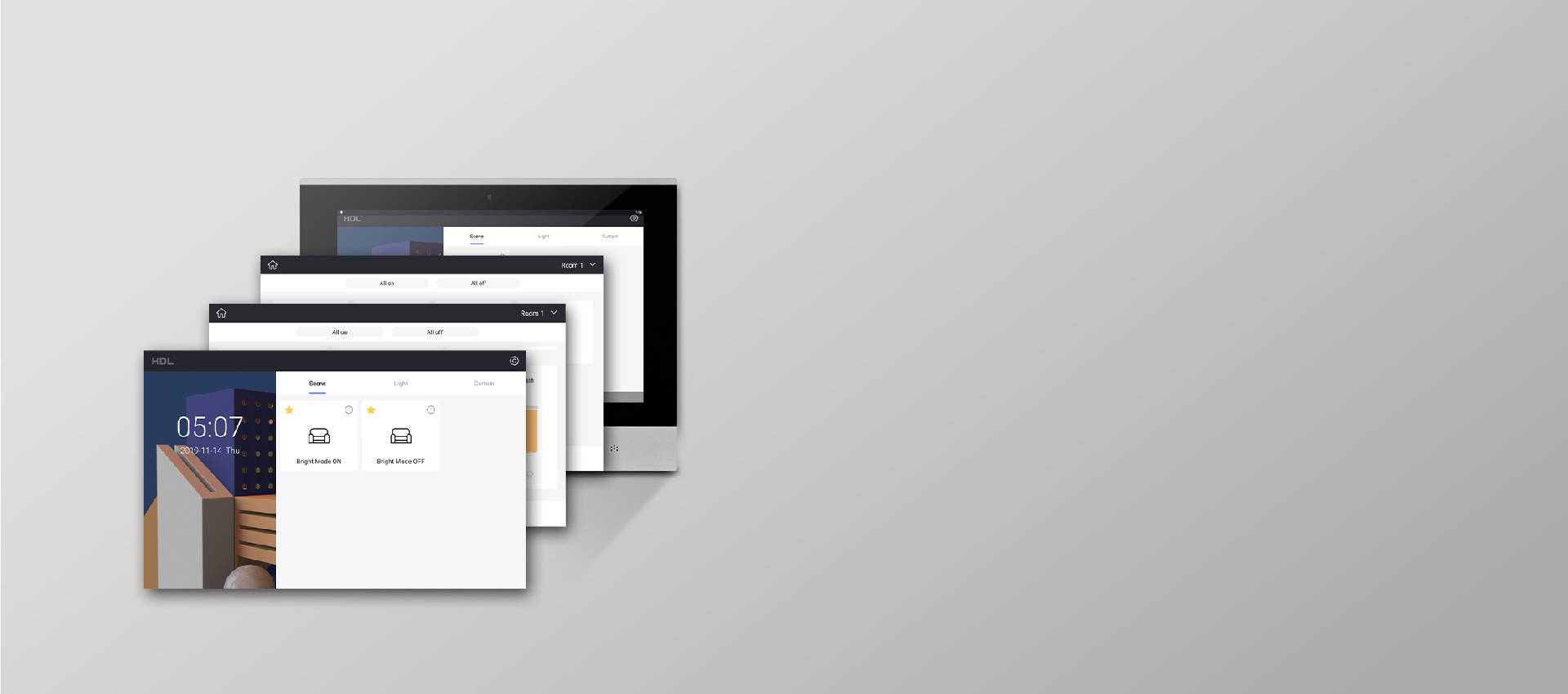

S10 Touch Control Panel

S10 is a touch panel equipped with a 10.1-inch 800 x 1280P HD display and a dedicated user interface. With the excellent industrial design and UI, a smart touch panel of such size will just make your building more beautiful apart from its technical features

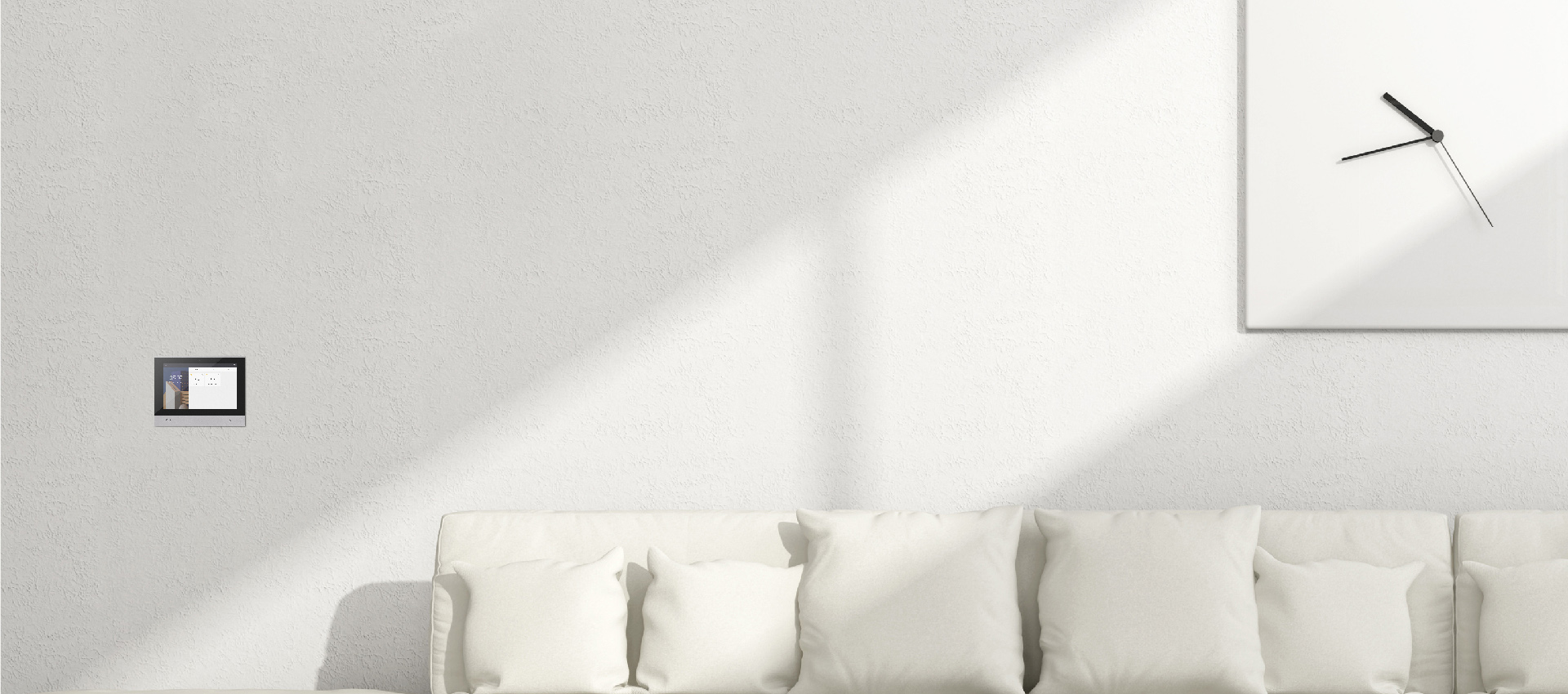

Aesthetically pleasing Interface design

With its extremely elegant, clean, simple and user-friendly interface, S10 can add credits to your interior decoration.

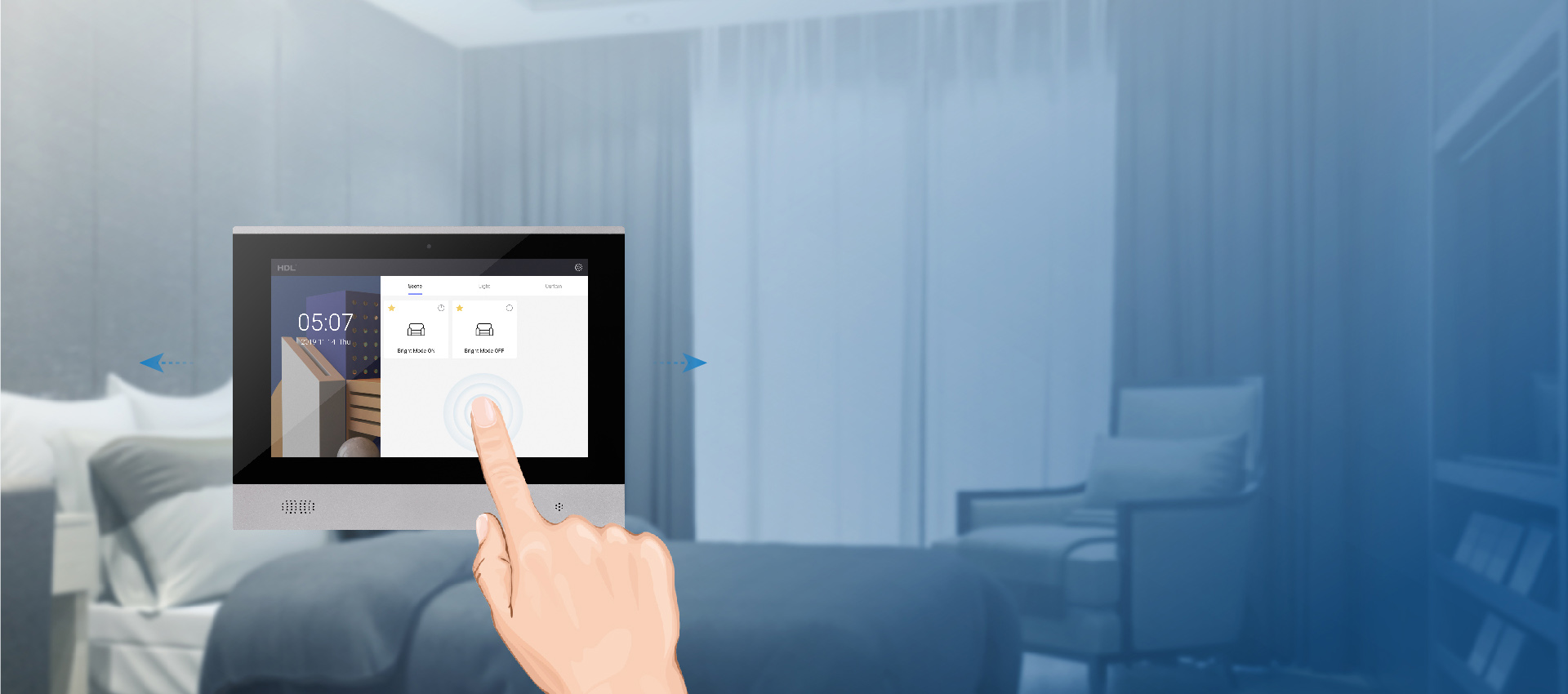

Quick and Smooth

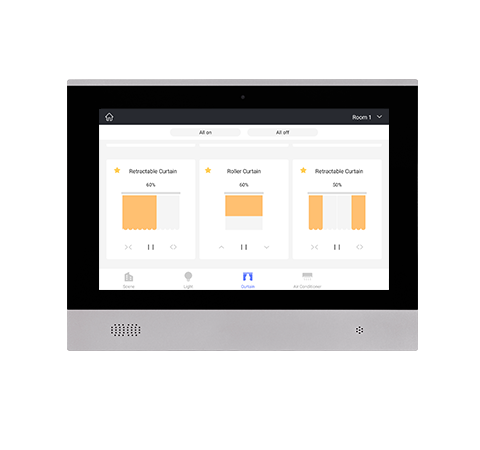

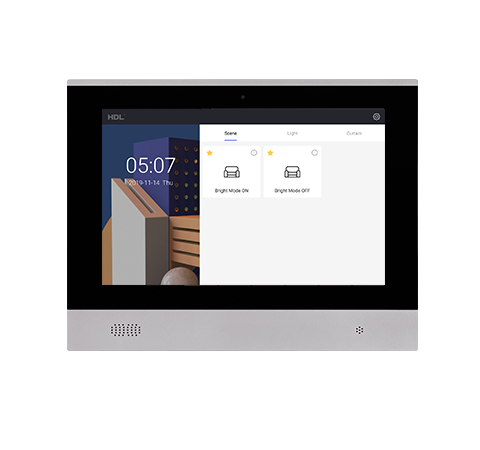

You can add your favorite Scenes, Lights and Curtains to the home screen. In most cases, you just need one touch to control the device you want. For more operation, you can swipe left or right on the screen.

Continuous variable brightness control

Enjoy continuous and smooth changes of brightness that you just love. Our S10 touch panel allows you to dim the light with a slider and see the brightness in percentage.

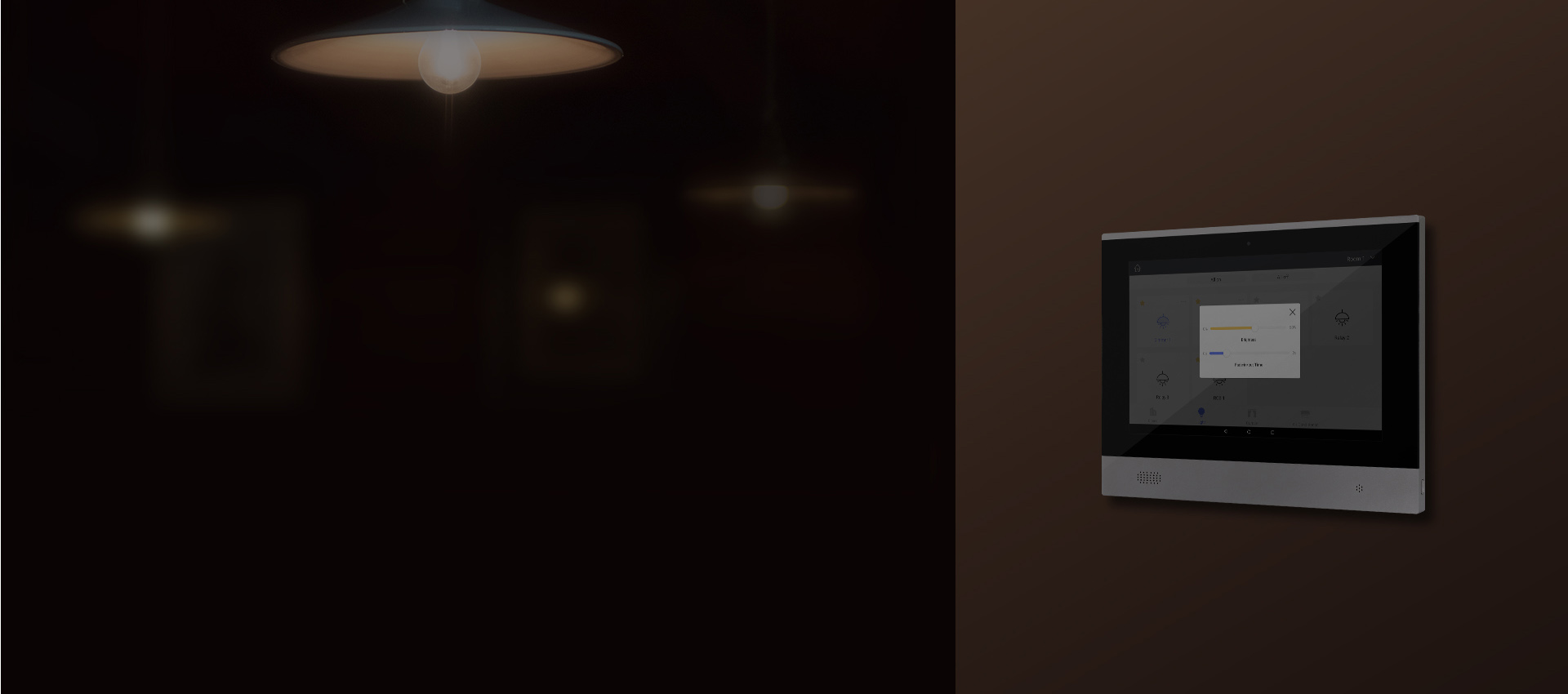

Fade-in and fade-out of light

To avoid radical changes of room brightness that make us visually uncomfortable, you can set a time period to let the light fade in or fade out. By doing so, you will just find the changes of light in your home as soft as sunrise and sunset.

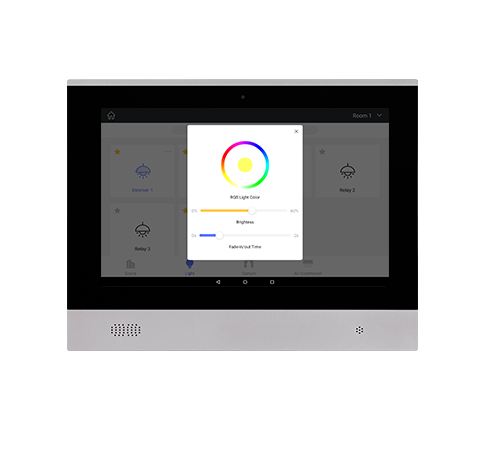

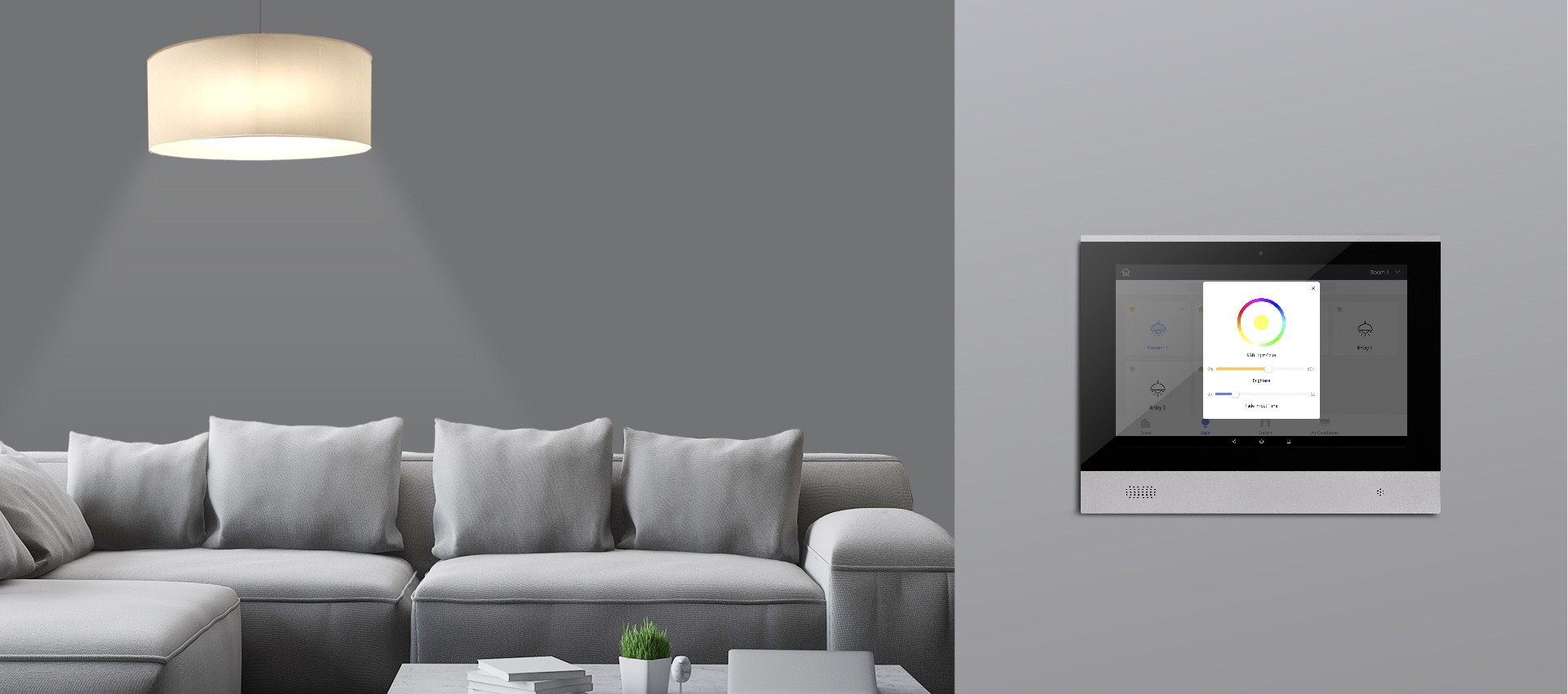

Visible color control

The lighting interface intuitively shows the current light color. You can change the light color by touching the color ring on the interface. And the light color will change as your finger moves.

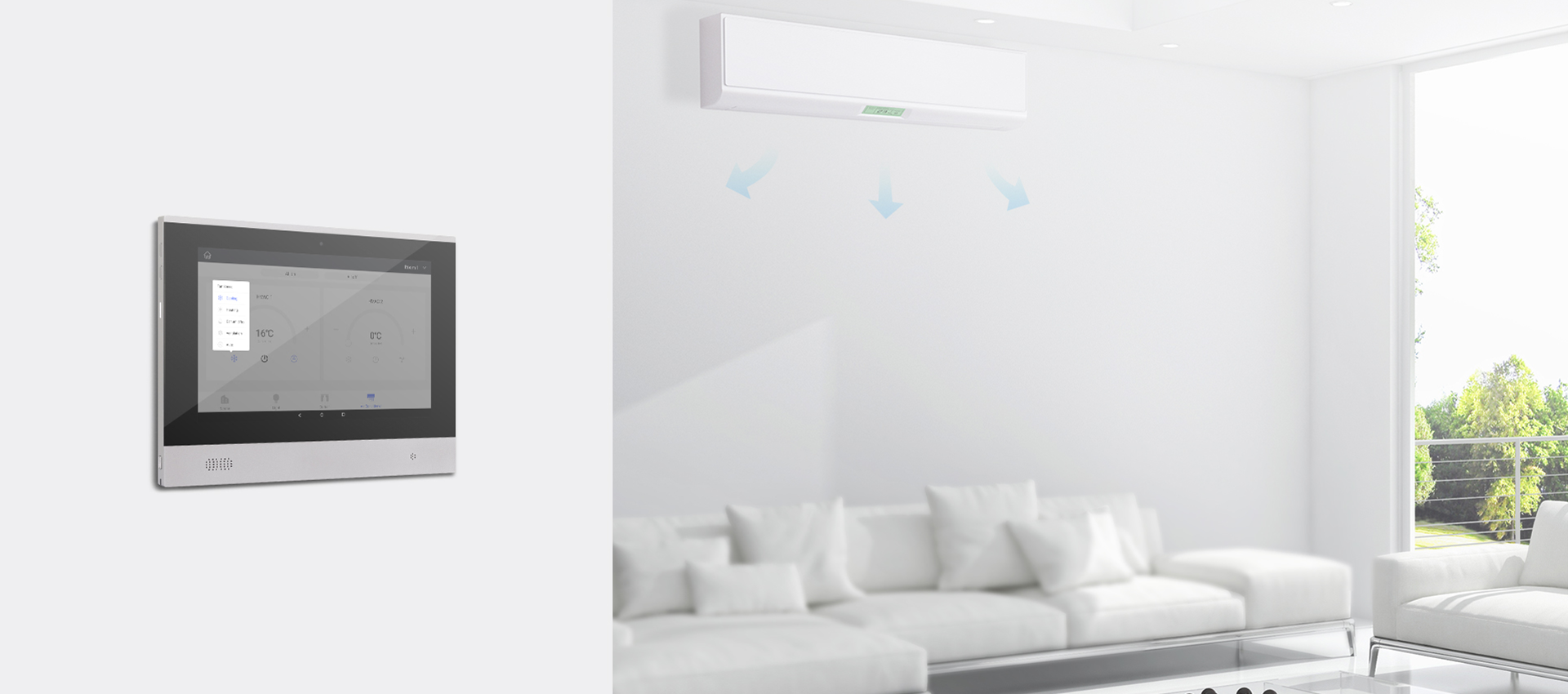

Just forget about the thermostat

S10 makes it easier to set the status of air conditioners. Adjusting the temperature by sliding on an arc will make you feel as premium as sitting in a luxury sedan. You may just forget about the thermostat.

Specs

10.1-inch 800X1280P display

Built-in real-time clock (RTC)

Built-in proximity sensor, temperature sensor

Power supply: DC 9 ~ 25V

Communication: IP, Buspro

S10

S10


Product code: HDL-MTS10B.2WI

Working voltage : 9~25V DC

Power : Max. 12W

Relay output : 4CH, 1A 30V DC Max. per channel

Working temperature : -5℃~45℃

Working relative humidity : ≤90%

Storage temperature : -20℃~60℃

Storage relative humidity : ≤93%

Housing material : Glass, PC, ABS, Aluminum alloy
S10
