Products

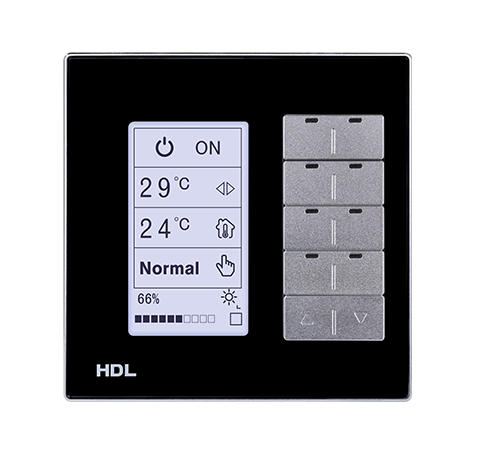

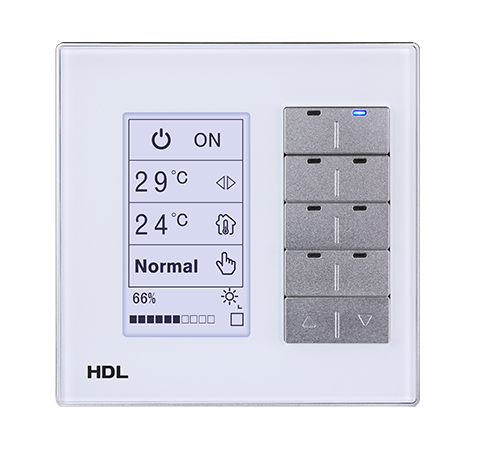

DLP

With 10 metal buttons, the DLP panel has the control pages for lighting, shading, HVAC and music. And in four of the general pages, users can change the content in LCD on programming software.

A multi-functional push button keypad.

If you prefer physical buttons but want to have a display to indicate the control targets, then the DLP panel is here for you.

Intuitive design

The LCD directly indicates the control contents when its push buttons are able to give you firm feedback that confirms your operation.

Specs

Mono-color LCD

Supports 147 languages

Customizable icons or captions

Built-in temperature sensor

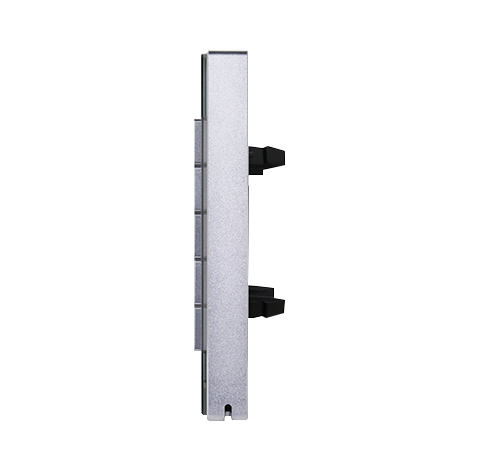

Aluminum frame

Power supply: DC 24V

DLP

DLP


Product code: M/DLP04.1-A2-48

Working voltage: 21~30V DC

Working current: 20mA/30V DC

Communication: KNX

Cable diameter of KNX terminal: 0.6 - 0.8mm

Working temperature : -5℃~45℃

Working relative humidity : ≤90%

Storage temperature : -20℃~60℃

Storage relative humidity : ≤93%

Housing material : Glass, PC, ABS, Aluminum
DLP
