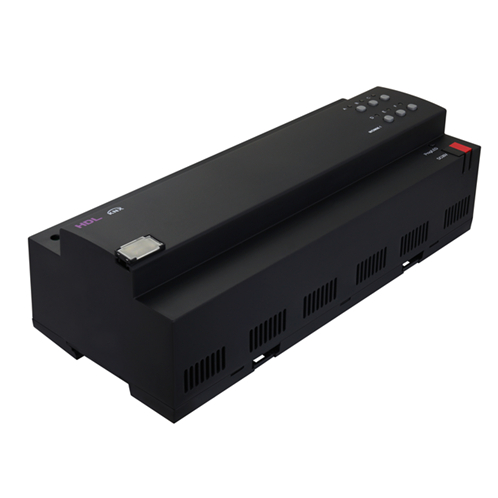

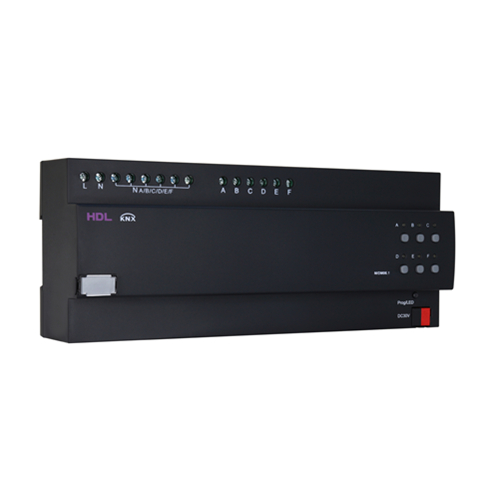

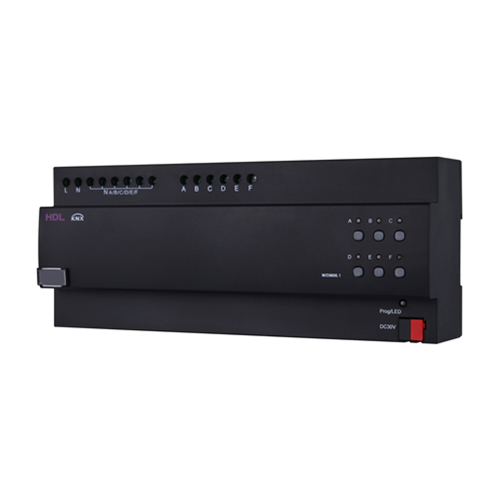

KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator

KNX 6CH 1.5A MOSFET Dimming Actuator

model:HDL-M/DM06.1

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which supports multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.

KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator
KNX 6CH 1.5A MOSFET Dimming Actuator

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which supports multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.


■ 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
■ Supports trailing edge mode and capacitive load types.
■ Parallel channels can form heavy current output.
■ Manual control: Manual switching, dimming for each channel.
■ Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection,
Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming,
Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence contr-ol, Heating control (PWM).


Basic Parameters
Working voltage 21~30V DC
Working current 25mA/30V DC
Input voltage 100V/240V AC (50/60Hz)
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
User control Manual operation for each channel
Line in/Line out terminals 2.5 - 4mm2
Output channel
HDL-M/DM02.1: 2CH, 3A/CH
HDL-M/DM04.1: 4CH, 1.5A/CH
HDL-M/DM06.1: 6CH, 1.5A/CH
Total output current
HDL-M/DM02.1: 6A Max.
HDL-M/DM04.1: 6A Max.
HDL-M/DM06.1: 9A Max.

External Environmental
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 90×216×64(mm)
Net weight
HDL-M/DM02.1: 405g
HDL-M/DM04.1: 412g
HDL-M/DM06.1: 521g
Housing material Flame-retardant nylon

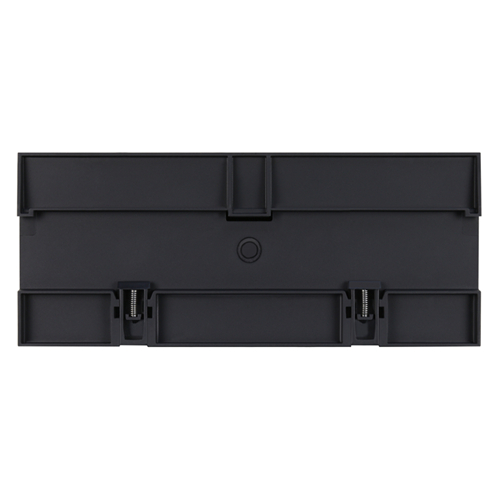

Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
