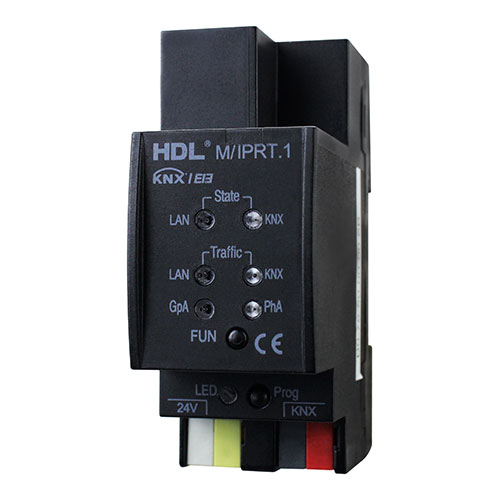

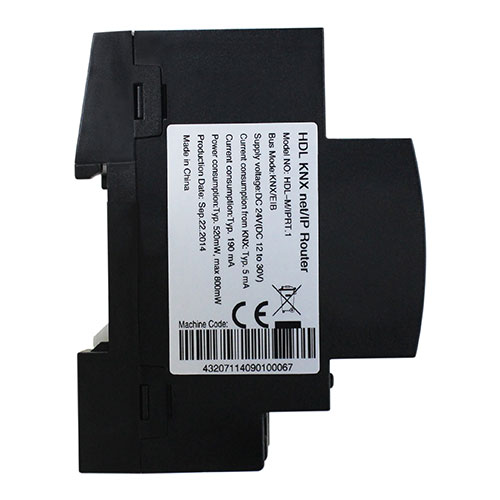

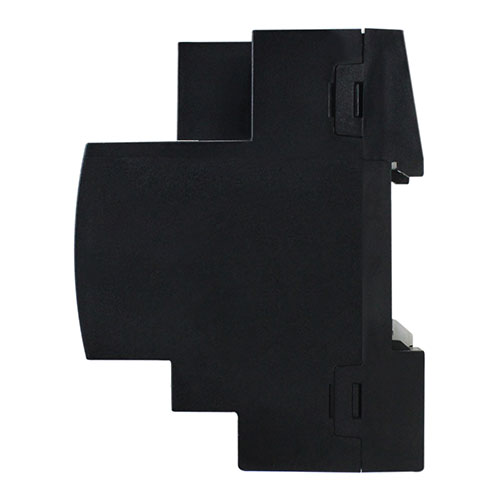

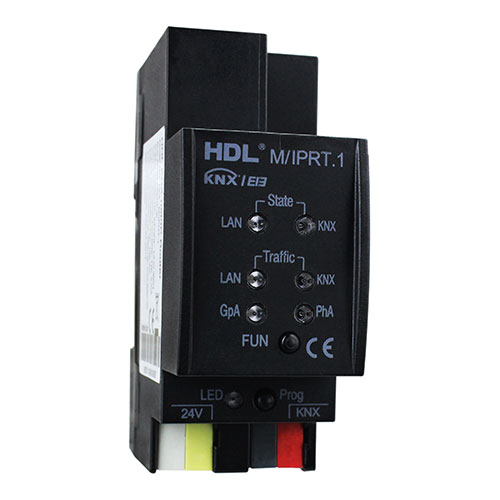

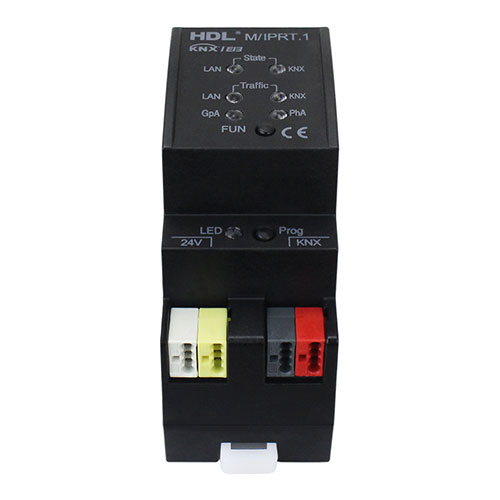

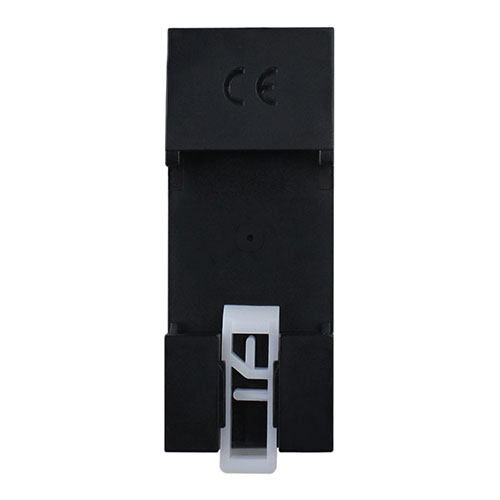

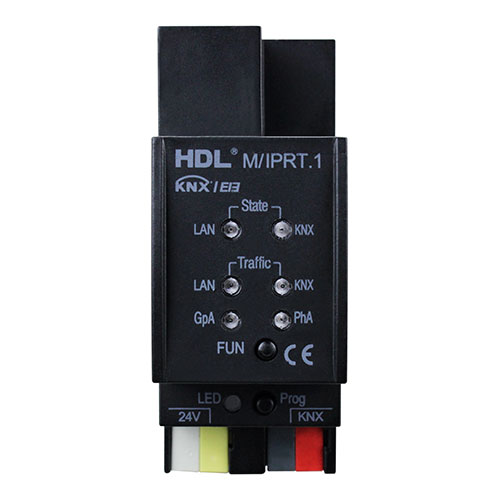

model:M/IPRT.1

KNX net/IP Router enables data exchange between KNX net/IP line and TP1 bus, and data download and data monitoring are available via ETS software.

KNX net/IP Router
KNX net/IP Router
KNX net/IP Router
KNX net/IP Router
KNX net/IP Router
KNX net/IP Router
KNX net/IP Router
KNX net/IP Router

KNX net/IP Router enables data exchange between KNX net/IP line and TP1 bus, and data download and data monitoring are available via ETS software.


■ Function key can temporarily stop data filtering, and data filtering will restore automatically when reaches the preset time.
■ Fast data caching, reliable data delivery and validation
■ Fast telegram data exchange between KNX net/IP and KNX TP1 bus through LAN network.
■ Up to 4 channels for data debugging and monitoring for ETS or monitoring devices.
■ 6 dual-color LED lights indicate all communication status.


Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Power consumption typ. 520mW, max. 800mW
Communication KNX

Cable diameter of KNX terminal 0.6 - 0.8mm


External Environment
Working temperature -5℃~45℃
Storage temperature -20℃~60℃
Relative humidity
(non-condensing)

≤93%


Specifications
Dimensions 90×36(2SU)×70(mm)
Net weight 66g
Housing material ABS
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
