model:HDL-MPDA04-RF.28

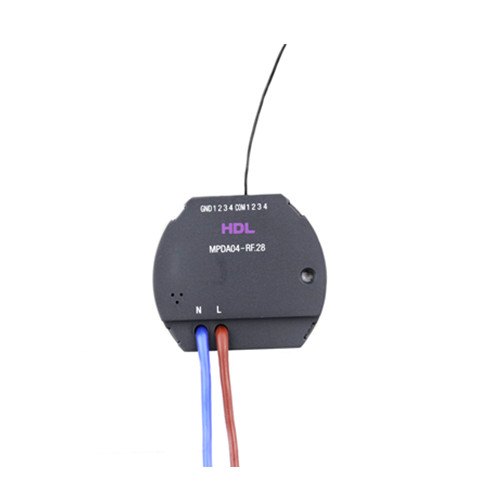

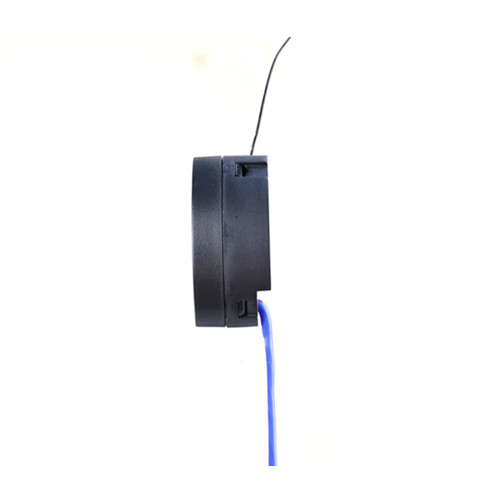

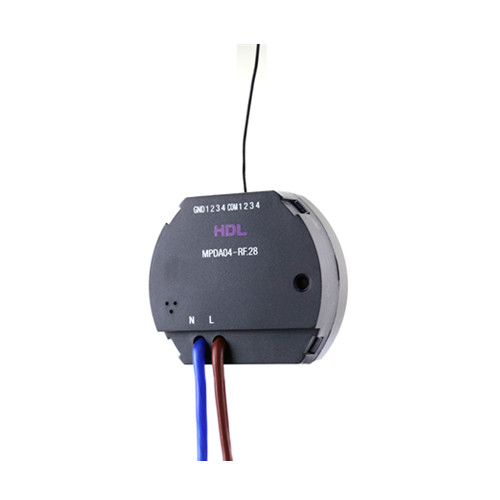

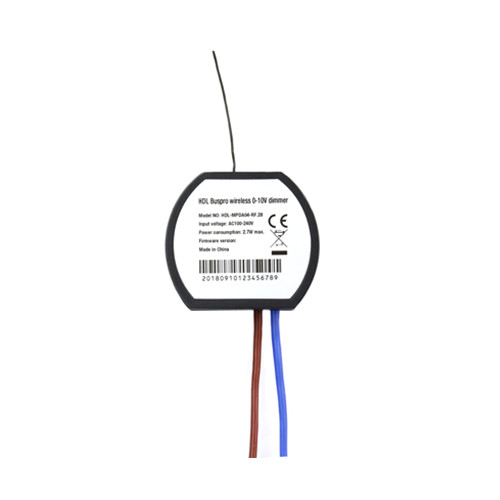

4CH Wireless 0~10V Dimming Actuator contains 4-channel 0-10V DC dimming outputs and 4-channel dry contact. With connection to electronic ballasts, the actuator can be used for LED dimming.Working with wireless gateway, the actuator can be used for controlling different targets.

4CH Wireless 0~10V Dimming Actuator
4CH Wireless 0~10V Dimming Actuator
4CH Wireless 0~10V Dimming Actuator
4CH Wireless 0~10V Dimming Actuator

4CH Wireless 0~10V Dimming Actuator contains 4-channel 0-10V DC dimming outputs and 4-channel dry contact. With connection to electronic ballasts, the actuator can be used for LED dimming.Working with wireless gateway, the actuator can be used for controlling different targets.

■ Supports 4CH dry contact inputs and 4CH 0-10VDC dimming outputs.

■ 0-10V DC output. Available with 4 default dimming curves – 1.0, 1.5, 2.0 and 3.0. Users can also customize the dimming curves.

■ Switching modes supported by dry contact: Mechanical switch, Single on, Single off, Single on/off,Combination on, Combination off, Combination on/off, Multi-function, Parallel switch.

■ Control targets: Scene, Sequence, Universal switch, Single channel lighting control, Broadcast scene,Broadcast channel, Curtain switch, GPRS control switch, Panel control, Music control.

■ Compliant with IEEE.802.15.4 standard.

■ Supports online upgrade.

■ Supports easy programming via HDL ON APP.


Basic Parameters

Input voltage :AC100-240V (50/60Hz)

Power consumption :2.7W max.

Current of each 0-10VDC output channel :0-30mA

Communication :Buspro Wireless

Wireless transmission power :+10dbm

Wireless sensitivity :-90dbm

Indoor communication distance :≤30m

RSSI (Received Signal Strength Indication) :>-80dbm


Frequency Allocation

WPAN (China) :780 to 786MHz

SRD (Europe) :864 to 870MHz

ISM (North America) :904 to 928MHz

Default PSK :HDL-SecurityKey0


External Environment

Working temperature :-5℃~45℃

Working relative humidity :≤90%

Storage temperature :-20℃~60℃

Storage relative humidity :≤93%


Specifications

Dimensions :52x46.5x20 (mm)

Net weight :33g

Housing material :PC, ABS

Installation :Wall box

Protection rating (Compliant with EN60529) :IP20

Fire and neutral wire :1.5mm2 (the module provides 15cm wire)

Load cable :1.5mm2 (the module provides 15cm wire)

Stripping length :5~7mm
