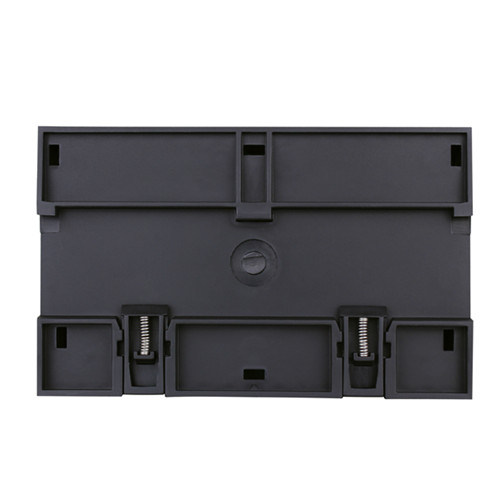

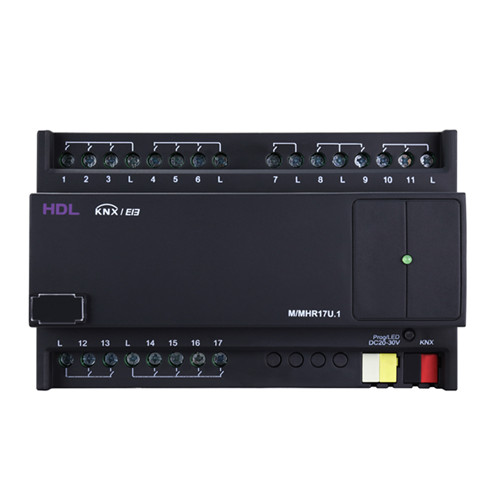

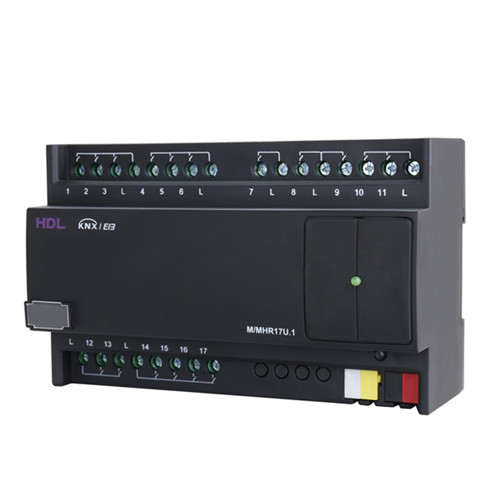

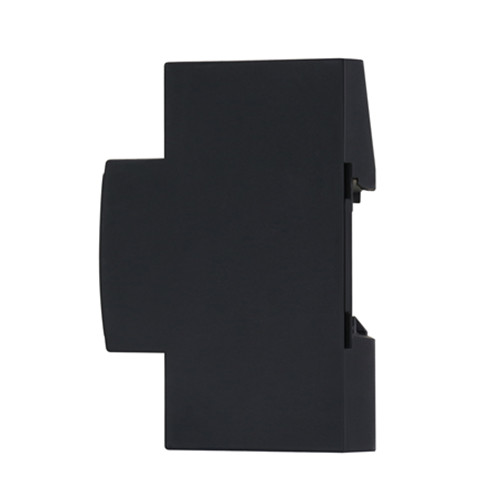

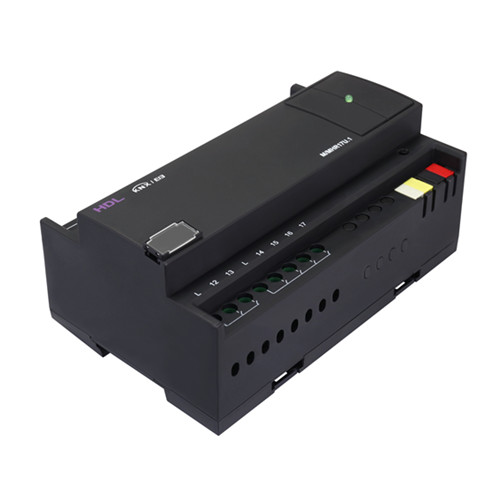

KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator

KNX 17CH Mix Actuator

model:M/MHR17U.1

KNX 17CH Mix Actuator is used for controlling relays, dimmers, curtains and air conditioners. The actuator supports 17CH control channels.

KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator
KNX 17CH Mix Actuator

KNX 17CH Mix Actuator is used for controlling relays, dimmers, curtains and air conditioners. The actuator supports 17CH control channels.

■ Supports 17CH relay control channels
■ Among the 17 relay control channels, CH1-6 and 12-17 are TV8 5A relays, and CH7-11 are magnetic latching relays with an operating current of 10A.
■ The 17 relay control channels can be connected to loads, for example, incandescent lamps, halogen lamps, and LED lamps, etc. They can be used for fan speed control or mode control of airconditioning, and curtain control (supporting inching control).



Basic Parameters
Working voltage 21~30V DC
Working current 14mA/30V DC
Auxiliary voltage 20~30V DC
Auxiliary current 97mA/30V DC
Input voltage AC100-240V (50/60Hz)
Output channel
12CH/5A
TV8 relay (CH1-6, CH12-17)
5CH/10A
Magnetic latching relay (CH7-11)
Communication KNX

Cable diameter of KNX terminal 0.6-0.8mm


External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃

Storage relative humidity ≤93%


Specifications
Dimensions 144mm×90mm×64mm
Net weight 469g
Housing material PA66
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
