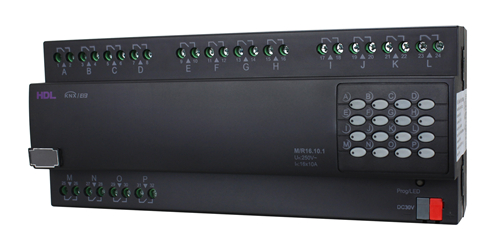

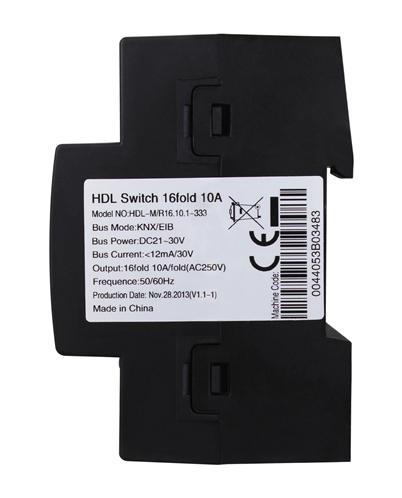

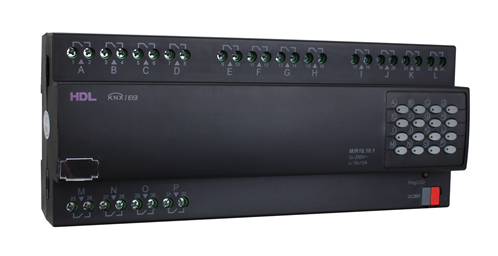

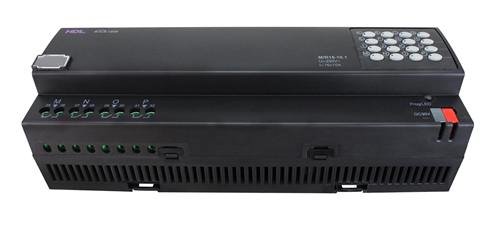

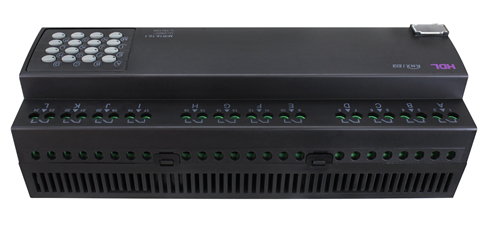

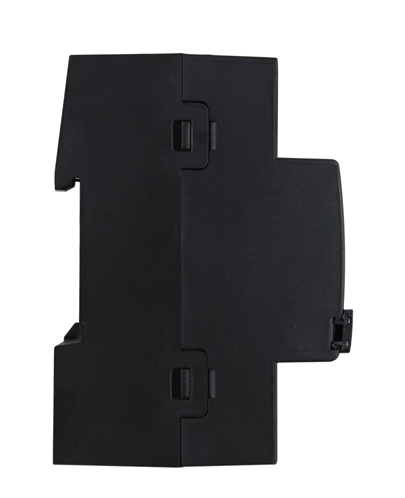

KNX 10A High Power Switch Actuator includes 4 types (4CH, 8CH, 12CH and 16CH) of output circuits, and each channel outputs 10A current. With characteristics of long life, low power consumption and fast execution speed, this series of actuators are in full compliance with European KNX safety standards and protocols of high-power switching equipment.
Basic Parameters
Working voltage: 21~30V DC Class 2
Working current: 15mA/30V DC
Input voltage:120V/240V AC (50/60Hz)
Communication: KNX
Cable diameter of KNX terminal: 0.6-0.8mm
Rated switch current: 10A lighting load, max inrush 500A
Operation times: >100,000
Line in/Line out terminals: 2.5-4m㎡
Output channel: 16CH/10A
External Environment
Working temperature : -5℃~45℃
Working relative humidity : ≤90%
Storage relative humidity : ≤93%
Net weight:830g

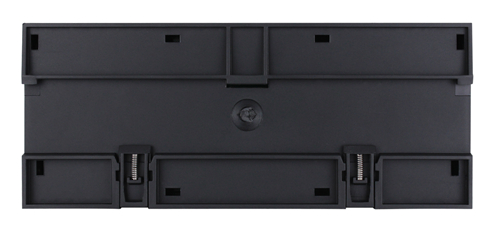

Installation :35mm DIN rail installation
