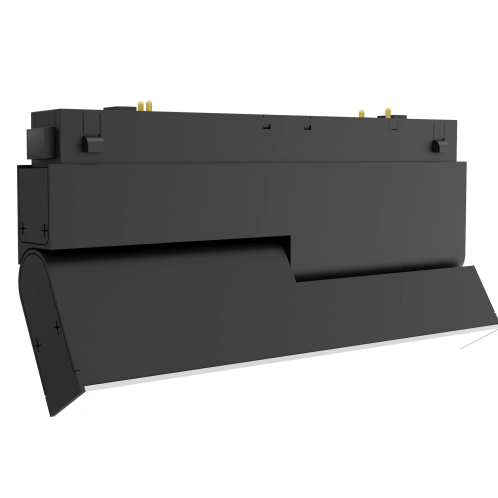

CX9002
• Magnetic Foldable Surface Light Inset with DALI dimming driver;
• Black painted finish (RAL 9005);
• LED 10W;
• Measurement 195mm x 20mm; height of the profile inset is 82mm;
• High color rendering at an index of CRI90;
• After a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips;
• 5 years warranty;
• Precise beam characteristic with 120° beam angle;
• Lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<15);
• Degree of housing protection according to DIN EN 60529 (IP20).
• Indoor
• General Light
• Install onto the track
• Profile Inset
• Housing: black
• System Output: 600lm
• IP 20
LED
• 2800K-6000K
• CRI>90
• 50000h@L80B10
• SDCM: 3
Optics
• Beam angle: 120°
• UGR <15
Electric
• LED Driver: DALI
• LED Power: 10W
• 36V
• 200mA
Dimensions
• Measurement: 195mm x 20mm
• Height: 82mm
