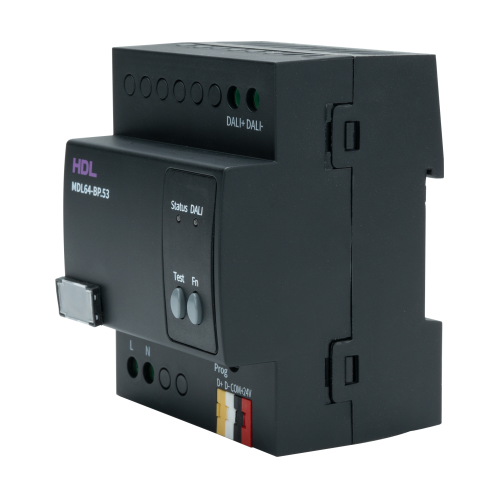

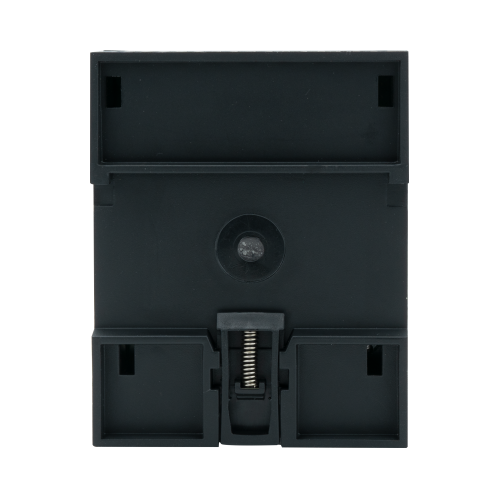

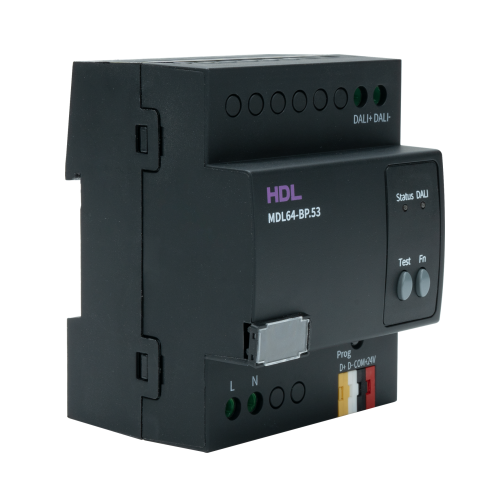

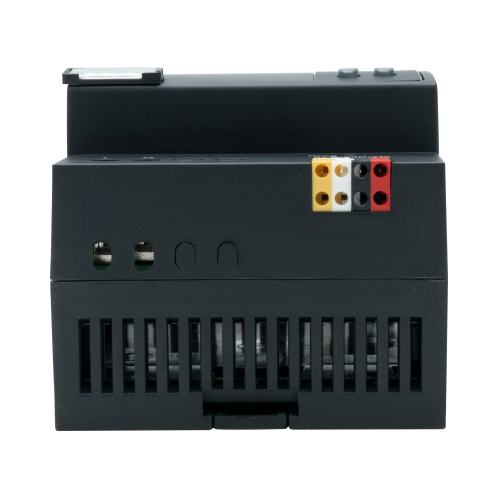

Buspro-DALI is a DALI-2 dimming control module based on HDL Buspro communication protocol. The device has single-loop control, area/group control, scene control, sequence control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
Buspro-DALI is a DALI-2 dimming control module based on HDL Buspro communication protocol. The device has single-loop control, area/group control, scene control, sequence control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
Rated voltage: 24V DC
Rated current: 15mA / 24V DC
Input voltage: 100 - 240V AC,50/60Hz 0.1A
Total number of drivers supported: 64
Communication protocol: Buspro, DALI
Working temperature: -5℃ ~ 45℃
Working relative humidity: ≤90%RH, non-condensed
Storage temperature: -20℃ ~ 60℃
4CH 16A High Power Switch Actuator with Current Detection has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
8CH 16A High Power Switch Actuator with Current Detection has 8 channels (16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
1CH 16A Flush-mounted Switching Actuator (EU) is a smart relay executive module installed in the wall box of the European standard panel. It has the characteristics of exquisite structure and rich circuits. The actuator adopts HDL Buspro protocol 485 Bus communication control, with 1CH 16A relay control channel(s), 4 dry contact signal input channels and 4 LED signal output channels.
