KNX-DALI Controller is a DALI-2 dimming control module based on KNX communication protocol. The device has single-loop control, zone/group control, scene control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
KNX-DALI Controller is a DALI-2 dimming control module based on KNX communication protocol. The device has single-loop control, zone/group control, scene control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
Features and Specifications
Supports 64 DALI drivers with different functions;
Supports switching, dimming, color temperature and color control;
Control objectives: broadcast, loop, group and scene;
Address management and assignment of DALI drivers with HDL KNX Assistant Software;
DALI driver scene control, which can be configured and managed with the HDL KNX Assistant Software;
Status feedback;
Online upgrade.
Dimension: 72×90×64mm
Communication Protocol: KNX, DALI
Rated current: 5mA/30V DC
Input voltage: 100 - 240V AC, 50/60Hz 0.1A
Number of drivers supported: 64
KNX 1CH 16A Flush-mounted Switching Actuator (EU) is an actuator 1CH 16A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan, sockets, etc.
KNX FCHC Actuator adopts KNX/EIB communication and is used for controlling air conditioner, fan, compressor and floor heating. The module function is set via ETS software and can work in conjunctions with different panels. And up to 7 digital temperature sensors can be connected.

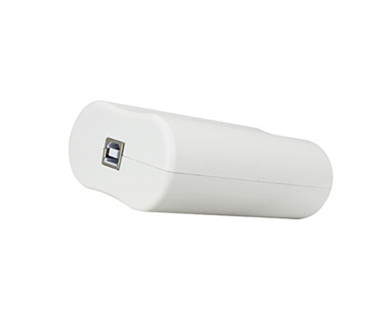

SB-IR-Learn.01 is the Infrared Code learner. It can learn various key commands. For example, you want to control the AC, TV, DVD, Audio & Video Device, etc. IR learner can be learned into HDL BUSPRO Pro system. It has the testing mode and it do not need the extra driver.
